AR Pro Series

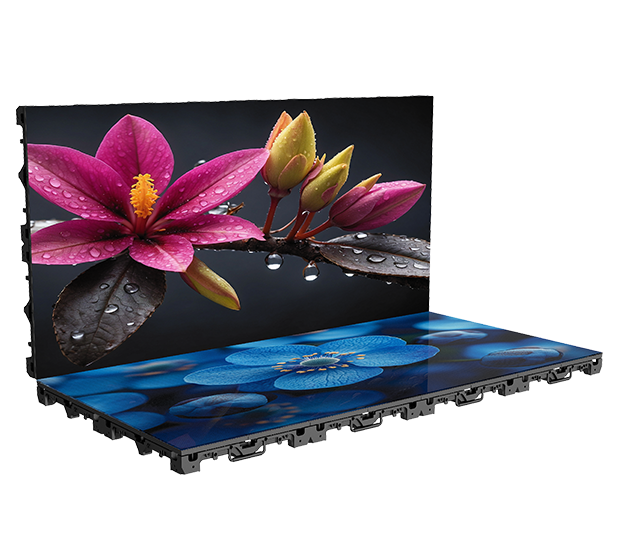

Multifunctional Indoor/Outdoor Floor Tile LED Display

Indoor:P1.9/2.6/2.9/3.9;Outdoor:P2.9/3.9

Core features

With a load-bearing capacity of up to 1.5 tons, it can withstand high-intensity use such as vehicle rolling and frequent pedestrian trampling. It offers optional interactive sensing capability, supports 5G and the Bangteng control system, and can function as an XR virtual shooting screen, a floor screen, or a standard backdrop screen.

High Load Capacity

Easy Maintenance

High Refresh Rate

GOB

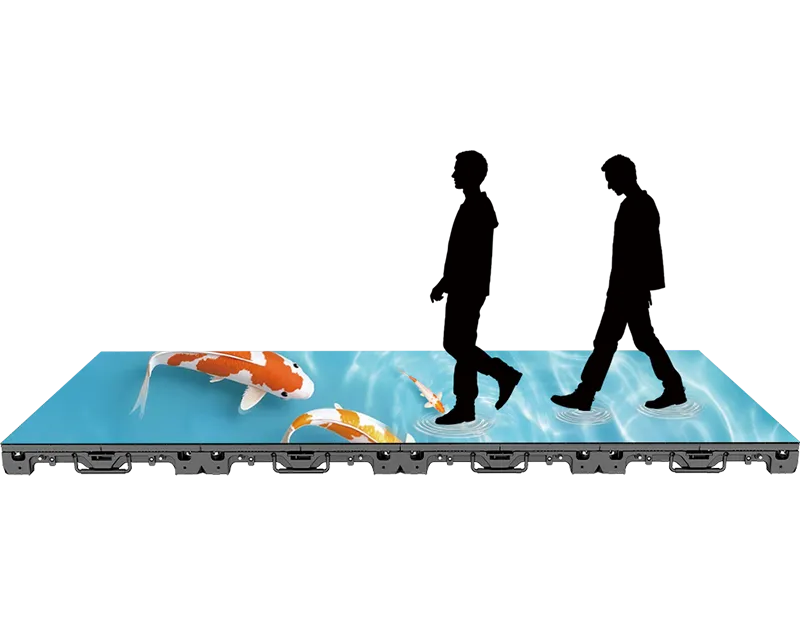

Strong Load Capacity

The cabinet utilizes an aluminum alloy frame and back cover, offering robust structure and a high load capacity of up to 1.5 tons. It can withstand intensive use such as car driving and high-frequency pedestrian footfall.

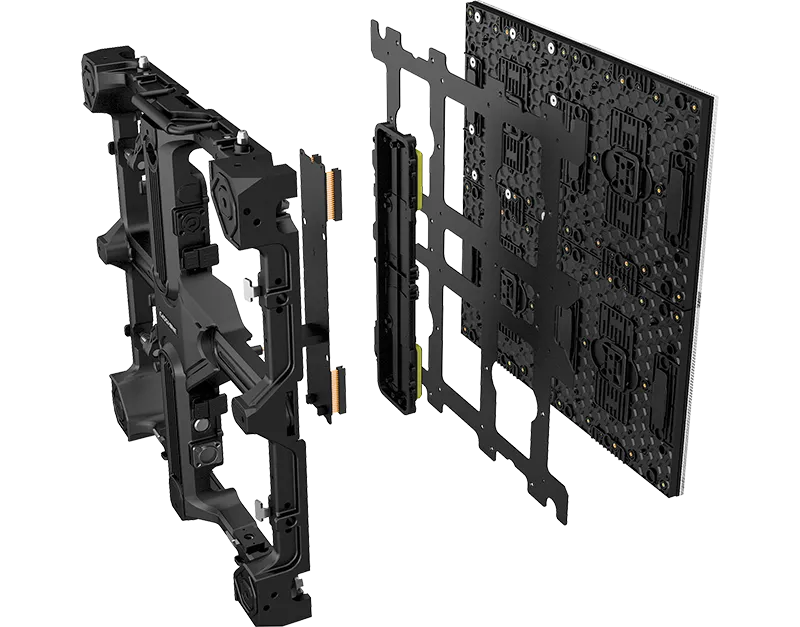

Easy Maintenance

Features magnetic modules, enabling convenient and efficient front maintenance.

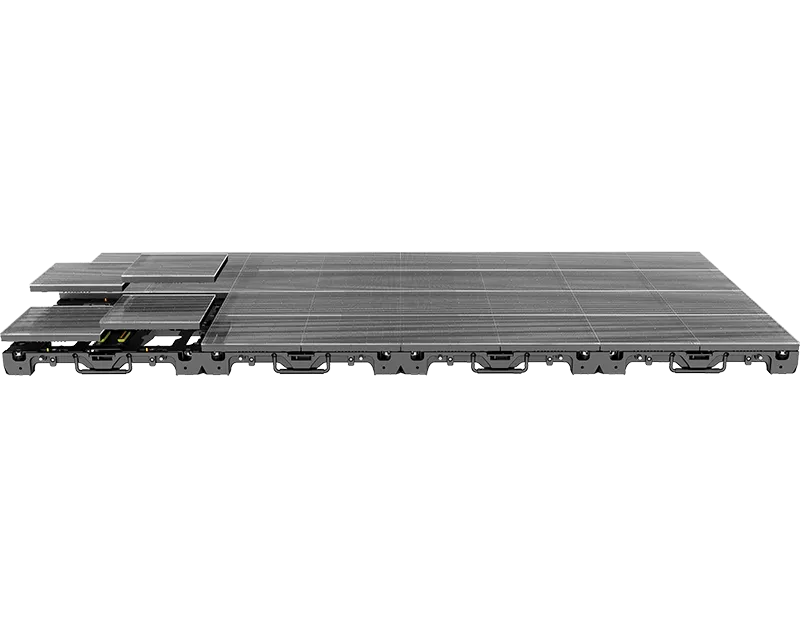

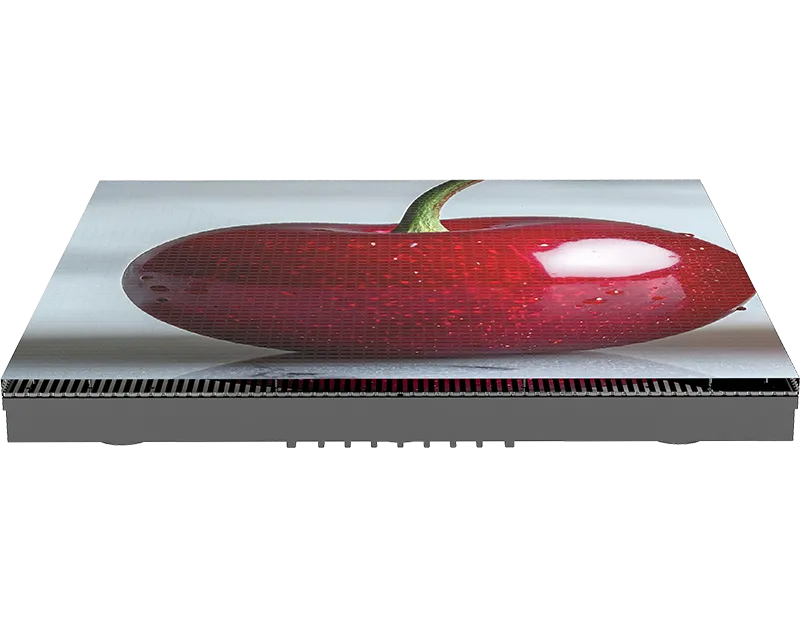

GOB Process

Achieves a minimum pixel pitch of indoor 1.9mm, delivering sharper and more detailed images. Combined with the GOB process, it further enhances resistance to impact, moisture, dust, and pressure, effectively extending the LED display's service life.

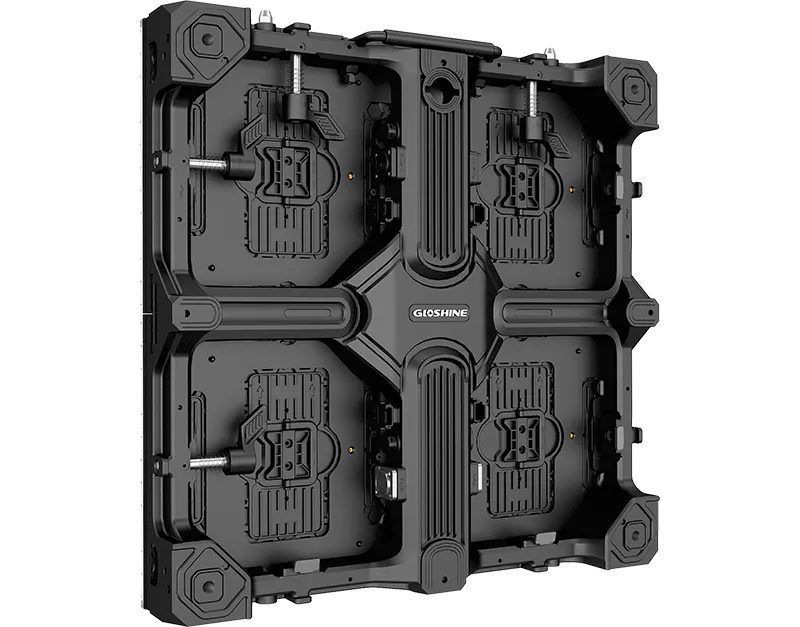

Adjustable Feet on Four Corners of the Cabinet

Equipped with side-access adjustment, these feet enhance the flexibility of leveling adjustments, with a height adjustment range of 85–94 mm, easily addressing issues caused by uneven floors.

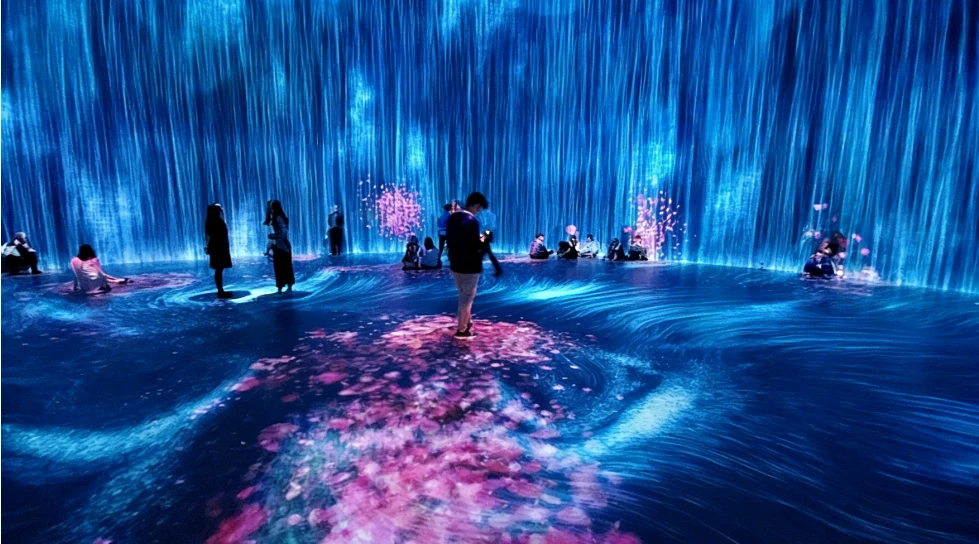

Interactive Sensing (Optional)

Enables human-screen interaction via high-resolution touch-tracking sensors, unlocking creative applications for immersive interactive exhibitions, commercial guides, and more.

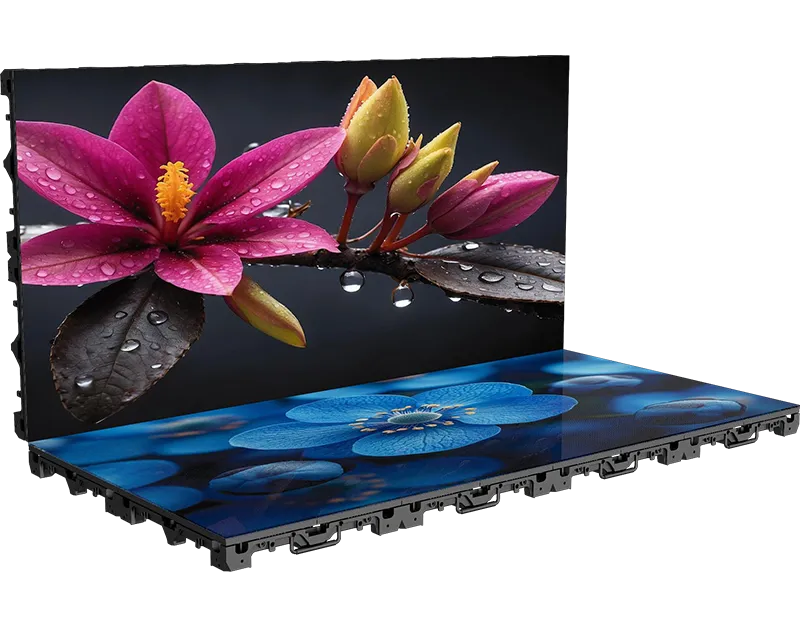

Dual-Purpose Screen

Can be used as a floor screen or a conventional background screen. Paired with the integrated installation system, setup is completed effortlessly without complex modifications.

Applications

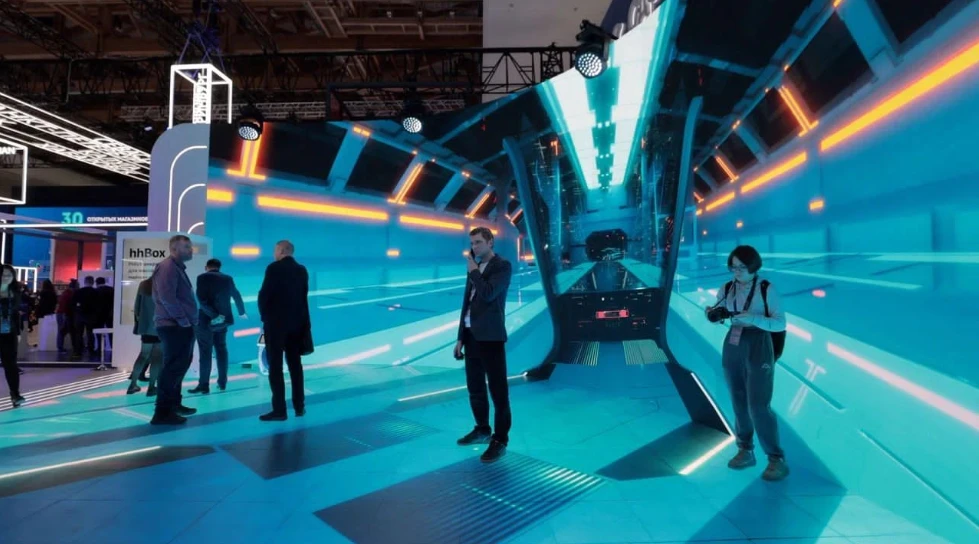

Exhibition & Display

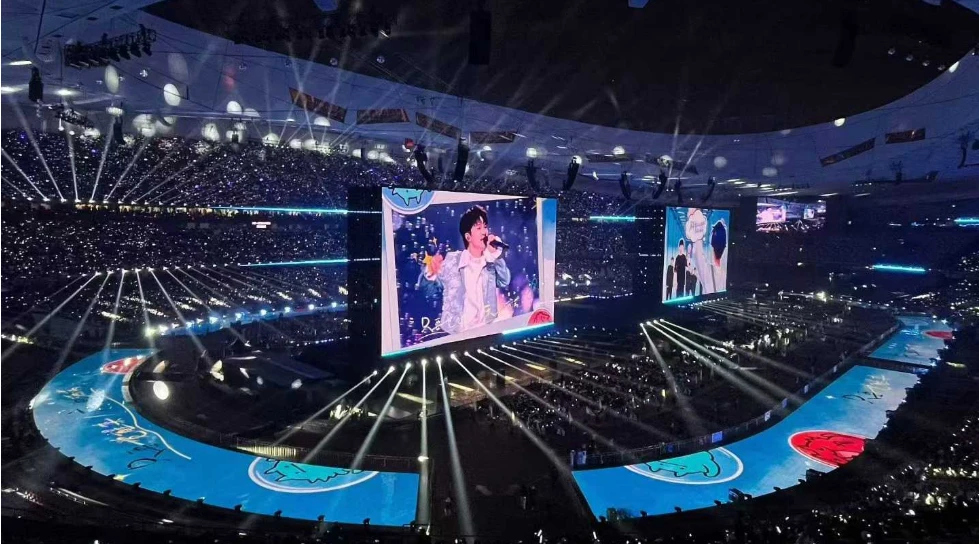

Performance Stage

Science Museum

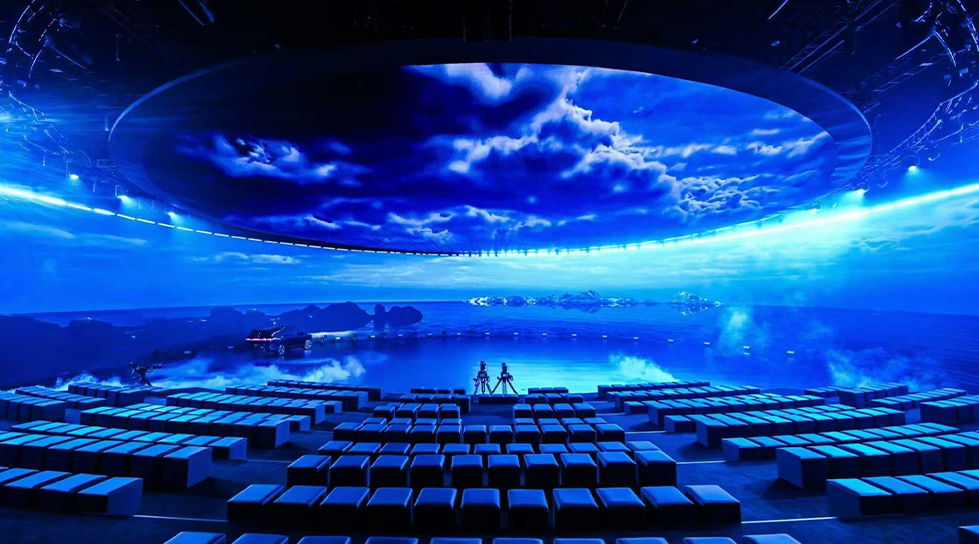

XR Virtual Production

Specification Sheet

Download the form

Application Scenario

Indoor

Outdoor

Model No.

AR Pro1.9

AR Pro2.6

AR Pro2.9

AR Pro3.9

AR Pro2.9

AR Pro3.9

Pixel Pitch

1.9

2.6

2.9

3.9

2.9

3.9

LED Type

SMD1515

SMD1515

SMD2020

SMD2020

SMD1415

SMD1921

Packaging techinque

GOB

GOB

GOB

GOB

SMD+PC

SMD+PC

Pixel Density

262144/㎡

147456/㎡

112896/㎡

65536/㎡

112896/㎡

65536/㎡

Panel Dimension

500mm*500mm*91mm

500mm*500mm*91mm

500mm*500mm*91mm

500mm*500mm*91mm

500mm*500mm*91mm

500mm*500mm*91mm

Panel Resolution

256*256pixel

192*192pixel

168*168pixel

128*128pixel

168*168pixel

128*128pixel

Scan Rate

1/32

1/24

1/21

1/16

1/21

1/16

Brightness

600-800nits

600-900nits

800-1000nits

800-1200nits

General Brightness for white LEDs:800-1200nits

General Brightness for White LEDs:800-1200nits

Refresh Rate

3840Hz/7680Hz

Gray Scale

14-16Bit

Color Temperature

6500-9500K

Panel Weight

12.8kg±10%

13kg±10%

Cabinet Material

Die-Casting Aluminum

Max Power Consumption

900W/㎡

Ave Power Consumption

450W/㎡

Viewing Angle

H:160°/V:160°

Working Voltage

AC200-240V~50/60Hz or AC100-240V~50/60Hz

IP Rating

IP31

Front IP65/Rear54

Serviceability

Front Maintenance

Curve

/

Max Stacking/Hanging

7.5m(Vertical Screen)

Operating Temp/Humidity

-20℃~+45℃;10%~60%RH

-20℃~+45℃;10%~90%RH

Storage Temp/Humidity

-40℃~+60℃;10%~60%RH

-40℃~+60℃;10%~60%RH

Processing platform

Novastar/Colorlight/Magnimage
