LE-Series

Indoor/Outdoor HD LED Screen

Indoor:P2.9,Outdoor:2.9/3.9/4.8

Core features

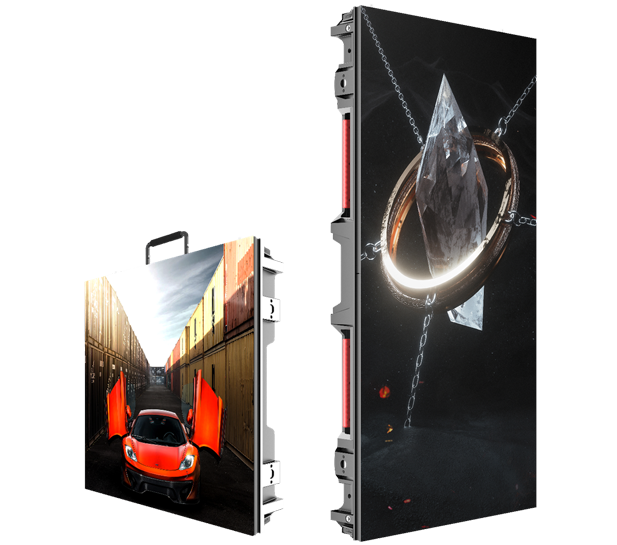

The LE Series LED display won the German Red Dot Design Award in 2020 and has now been upgraded to the third generation. The cabinet features a uniquely innovative structural design, with standard cabinets as the default and curved cabinets available as an option. The curved cabinet offers an adjustable curvature range of ±10°, with 2.5° per unit. The LE-B Series also supports single- or double-edge trimming based on requirements, enabling creative shapes such as right angles and cubic columns. It is a high-end rental LED display specifically tailored for large-scale events such as concerts and sports competitions.

Magnetic Module

Tool-Free Maintenance

Wide Viewing Angle

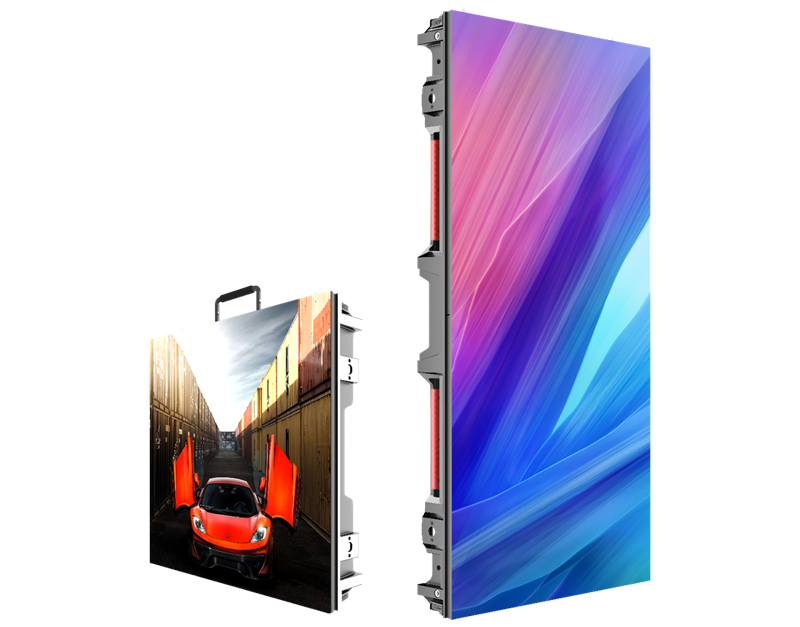

90° Splicing

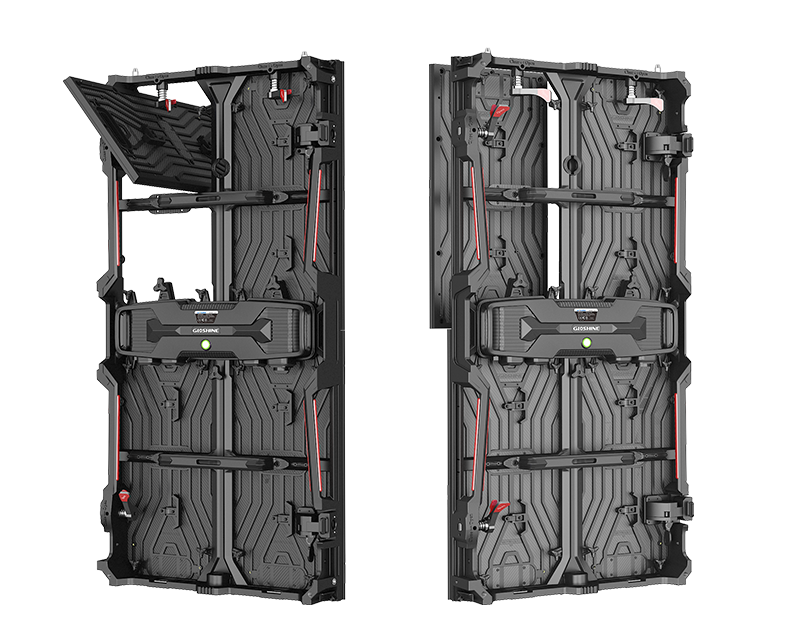

Quick Maintenance

Magnetic modules support front & rear maintenance, adapting to quick maintenance in various installation environments.

Anti-collision Design(Optional)

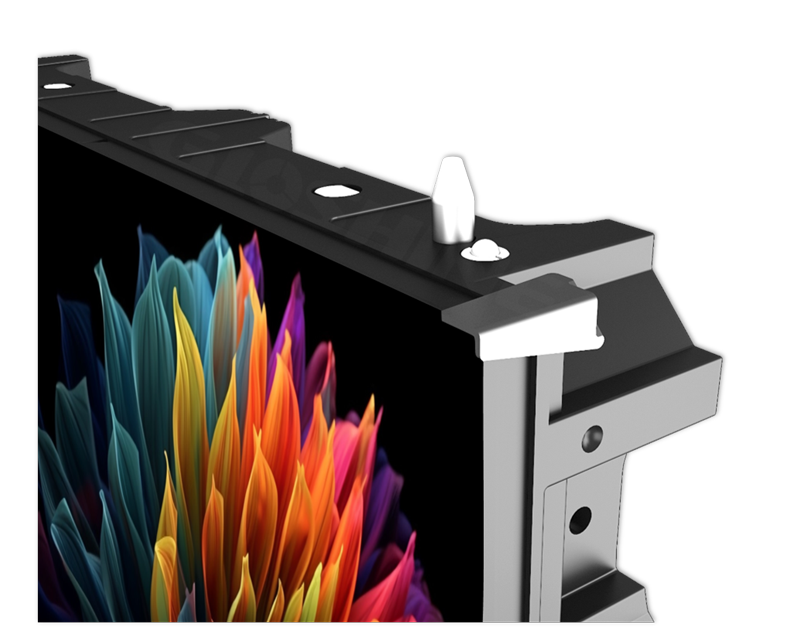

Cabinet corners are reserved for protection corner installation.The optional protection corner can protect corner LEDs from damage due to collisions.

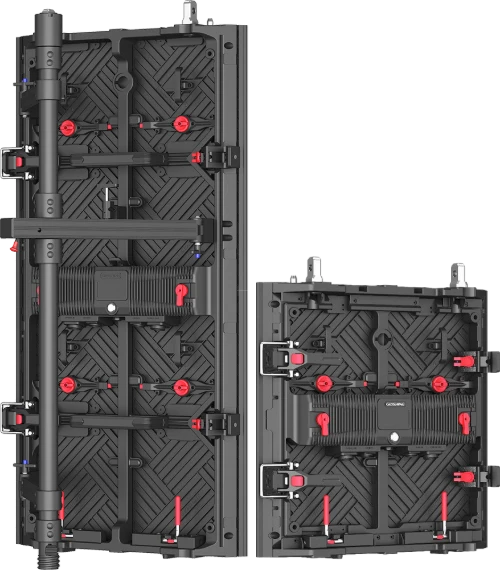

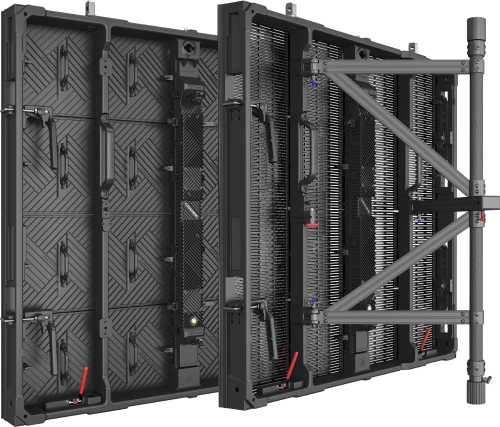

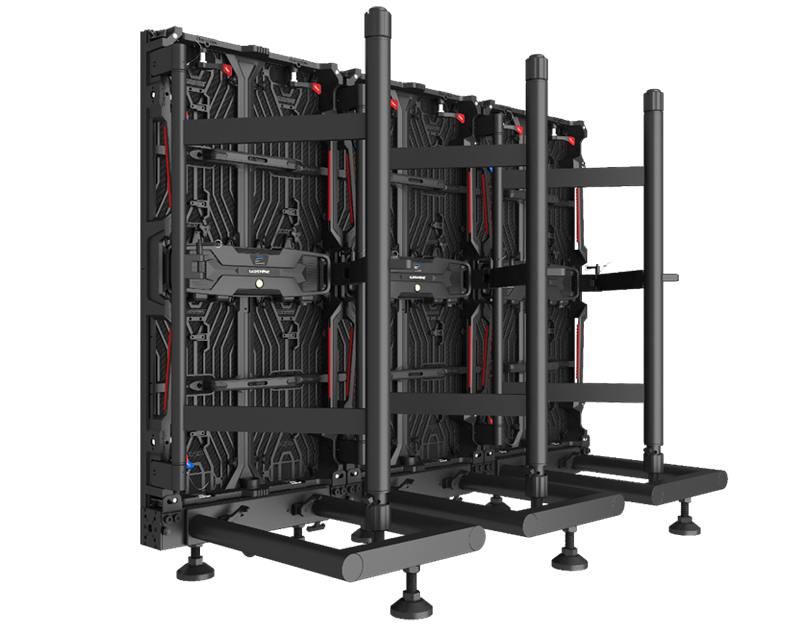

Touring Frame (Optional)

The optional touring frame for LE cabinet making stacking&hanging installation easier and more convenient. Friendly for the big concerts and festivals hanging up for wind resistant.

Stable Performance

Stick the high quality standard for excellent display effect, stable performance, and maintain well image quality even during long hour operating.

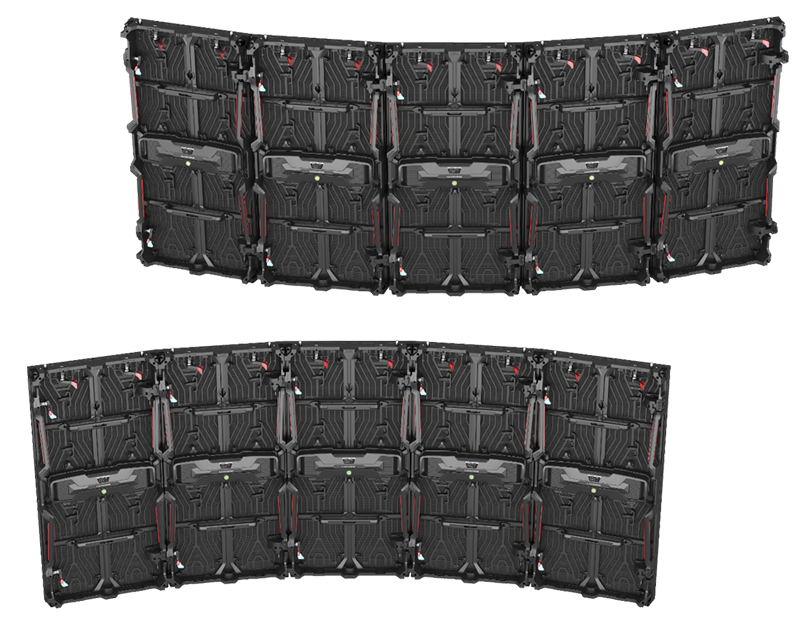

Curved Splicing

Concave:-10° -7.5° -5° -2.5° 0°;Convex:0° 2.5° 5° 7.5° 10° .

Applications

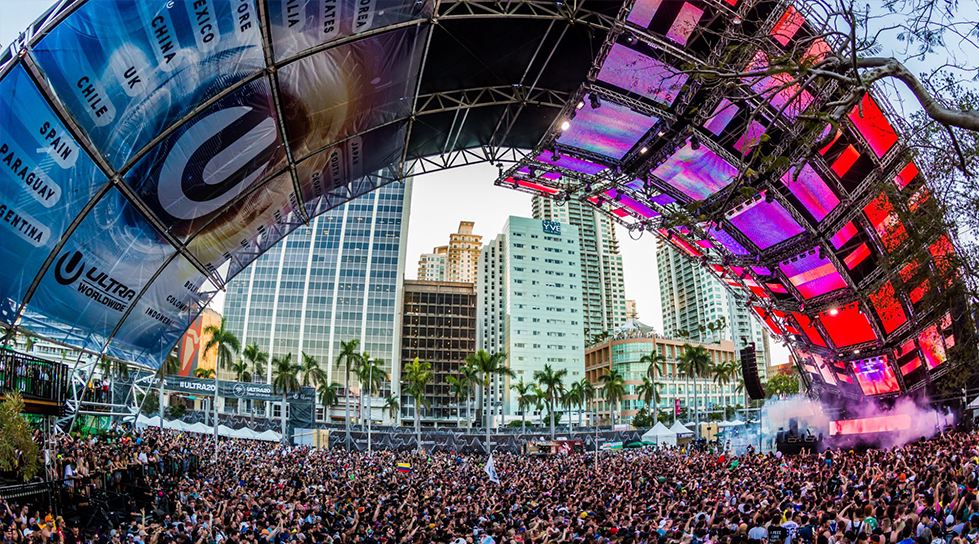

Music Festival Music Festival

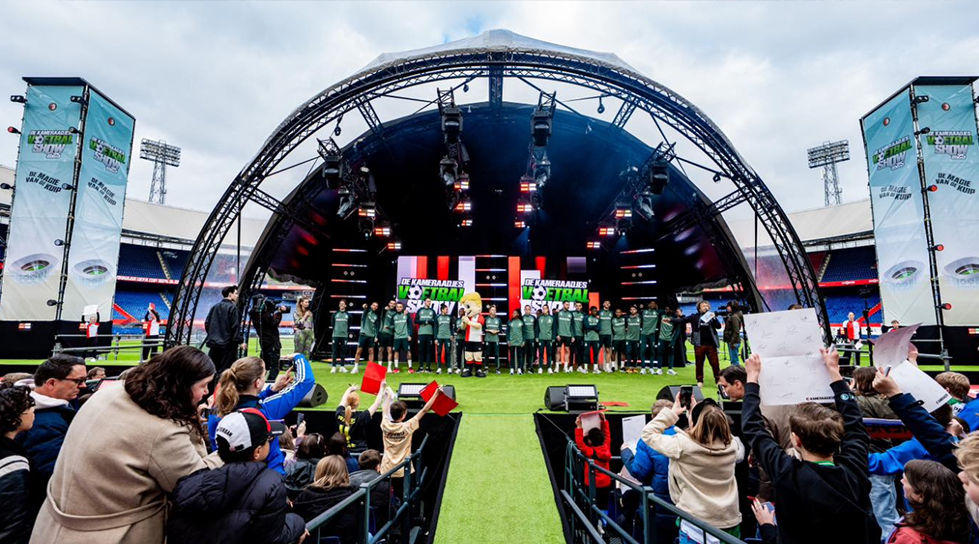

Sports Events

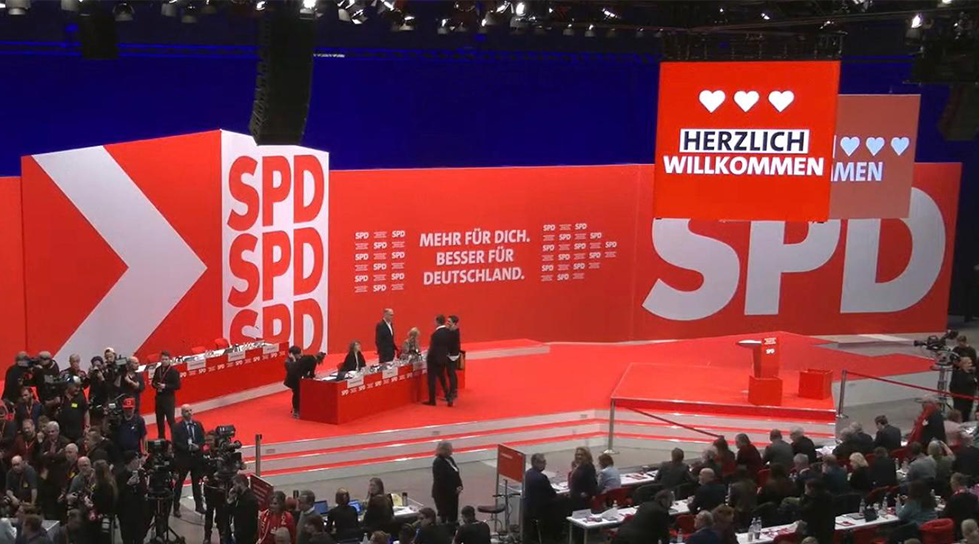

Executive Conference

Brochure

LE Series

Specification Sheet

Download the form

Model No.

LE2.97B(Indoor)

LE2.97B(Outdoor)

LE3.91B(Outdoor)

LE4.81B(Outdoor)

Pixel Pitch

2.97mm

2.97mm

3.91mm

4.81mm

LED Type

SMD2020

SMD1415

SMD1921

SMD1921

Pixel Density

112896 pixel/㎡

112896 pixel/㎡

65536 pixel/㎡

43264 pixel/㎡

Panel Resolution

168*336 pixel

168*336 pixel

128*256 pixel

104*208 pixel

168*168 pixel

168*168 pixel

128*128 pixel

104*104 pixel

Scan Rate

1/21

1/21

1/16 or 1/8

1/13 or 1/7


Brightness

800-1200nits

General Brightness for White LEDs:3000-4000nits

General Brightness for White LEDs:3500-4000nits

General Brightness for White LEDs:3500-4000nits

General Brightness for Black LEDs:2800-3100nits

General Brightness for Black LEDs:2800-3100nits

General Brightness for Black LEDs:2500-3100nits

high Brightness for Black LEDs:3000-4000nits

high Brightness for Black LEDs:3500-4000nits

high Brightness for Black LEDs:3500-4000nits

high Brightness for White LEDs:3500-4500nits

high Brightness for White LEDs:4500-5000nits

high Brightness for White LEDs:4500-5000nits

Color Temperature

6500-9500K

Panel Dimension

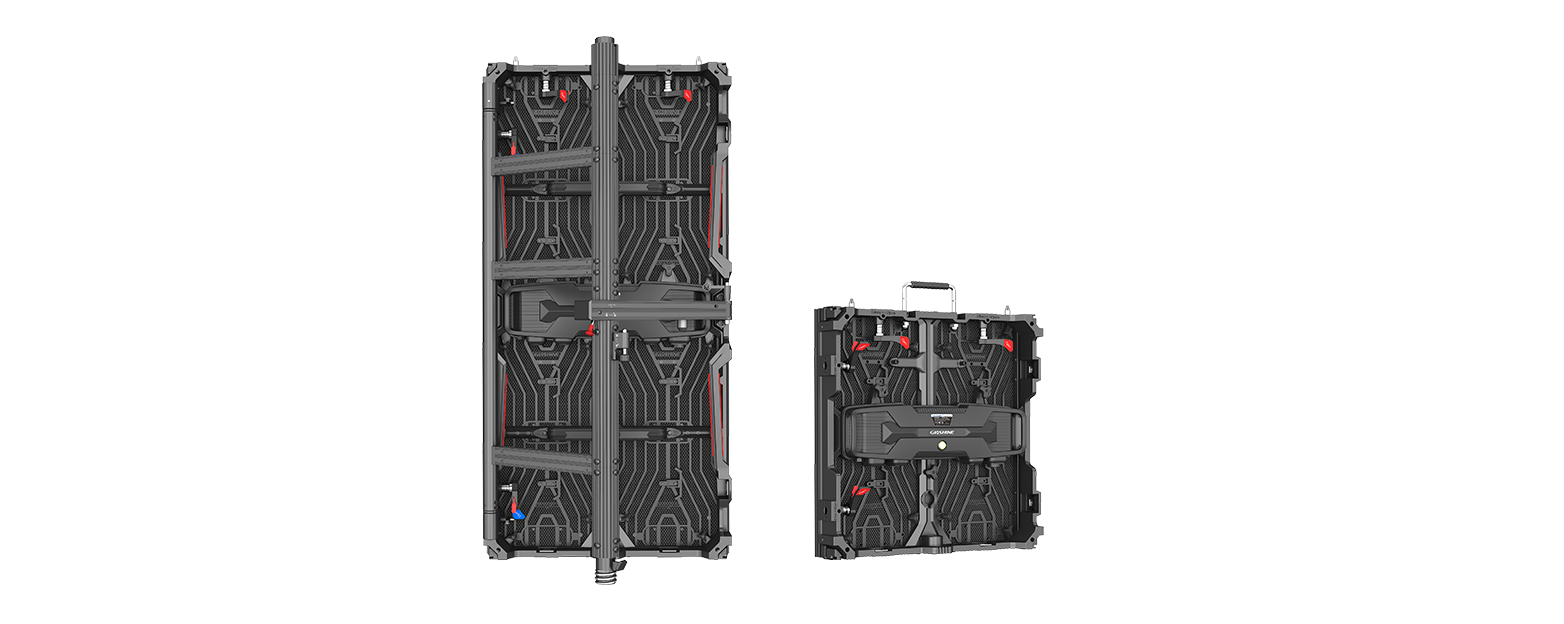

LE mini:500mm*500mm*87mm LE:500mm*1000mm*87mm

Panel Weight

LE mini:9.5kg±10% LE:14.7kg±10%

Cabinet Material

Die-Casting Cabinet

Max Power Consumption

≤650w/㎡

Ave Power Consumption

≤325w/㎡

Viewing Angle

H:160°V:140°

Refresh Rate

3840Hz/7680Hz

Gray Scale

14-16bit

Working Voltage

AC100-240V~50/60Hz or AC200-240V~50/60Hz

IP Rating

IP30

Front IP65,Rear IP54

Curve

-10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10°

Max Stacking/Hanging

10m

Lifetime

50000h

Operating Temp/Humidity

-20℃~+45℃;10%~60%RH

-20℃~+45℃;10%~90%RH

Storage Temp/Humidity

-40℃~+60℃;10%~60%RH


Accessories

Flight case

Dolly

Air Frame

Signal cable

Signal cable
