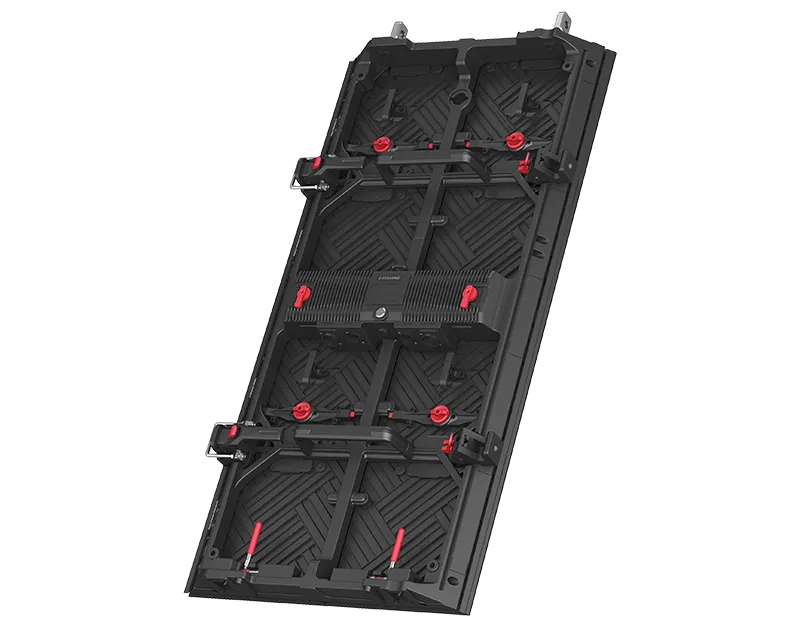

ZS PRO II Series

The 2nd Generation High-End Outdoor Rental LED Display

P3.9/4.8/5.9

Core features

The ZS PRO II series features a completely tool-free maintenance design, allowing for manual installation and removal without any tools, making it ideal for high-frequency rental applications.

High Refresh Rate

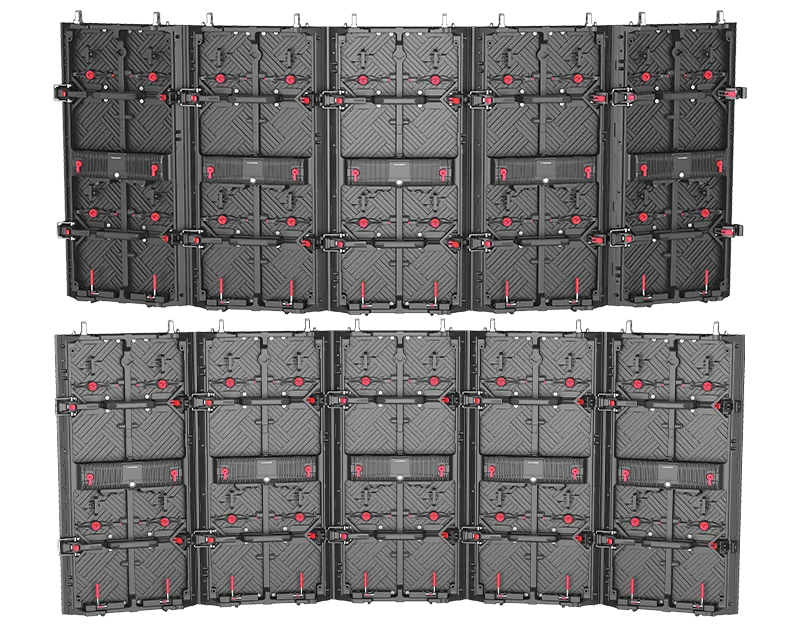

Curving Capability

90° Splicing

Quick Maintenance

IP65

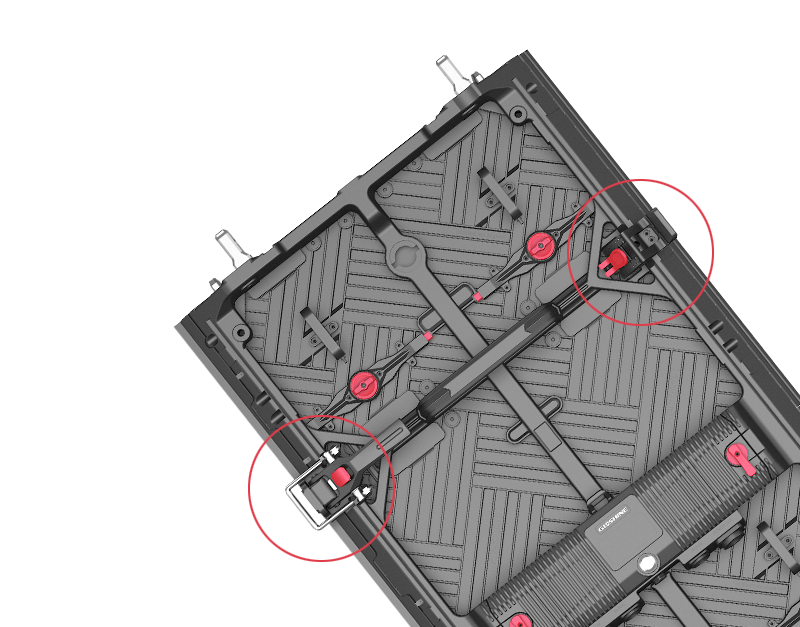

Efficient Installation

Incorporating a left-right bidirectional push-pull lock design, the durable, large-sized locking system connects panels quickly and firmly, ensuring a stable screen structure and significantly improving on-site installation and dismantling efficiency.

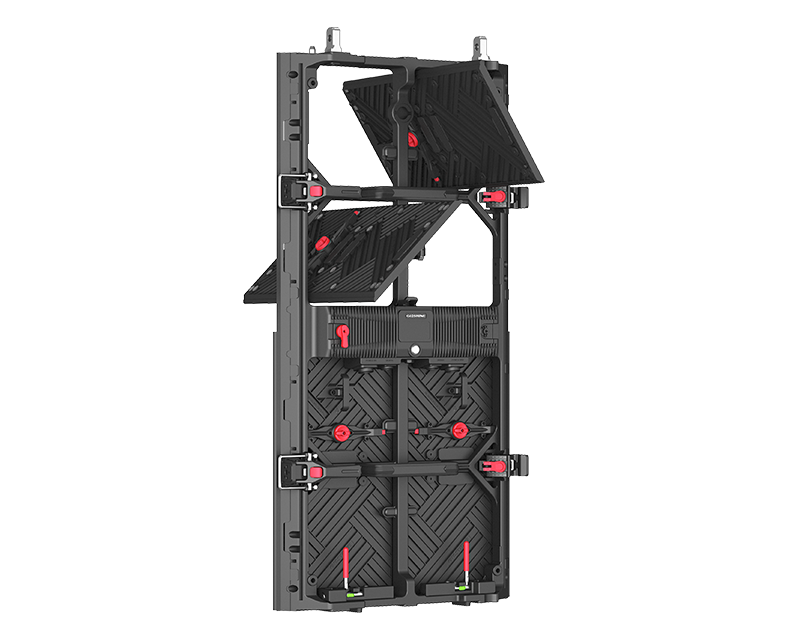

Tool-free Maintenance

Optional magnetic modules for fast front maintenance. Combined with rotary knob fixation, this dual-securement method can prevent misalignment during transportation and avoid the risk of falling from height.

High Protection

The power and signal connectors are designed to face vertically downwards, minimizing exposure to rainwater and enhancing overall waterproof performance.

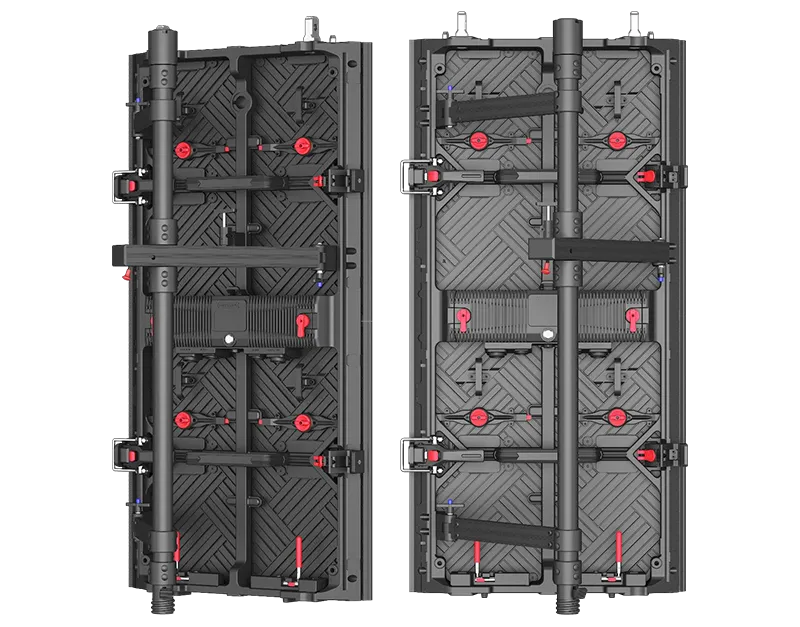

High Wind-Resistance

Equipped with integrated wind-bracing system(optional) for stable and secure structure, integrating screen fixation, force dispersion, and increasing installation stability functions, supporting stacking&hanging installation up to 20 meters.

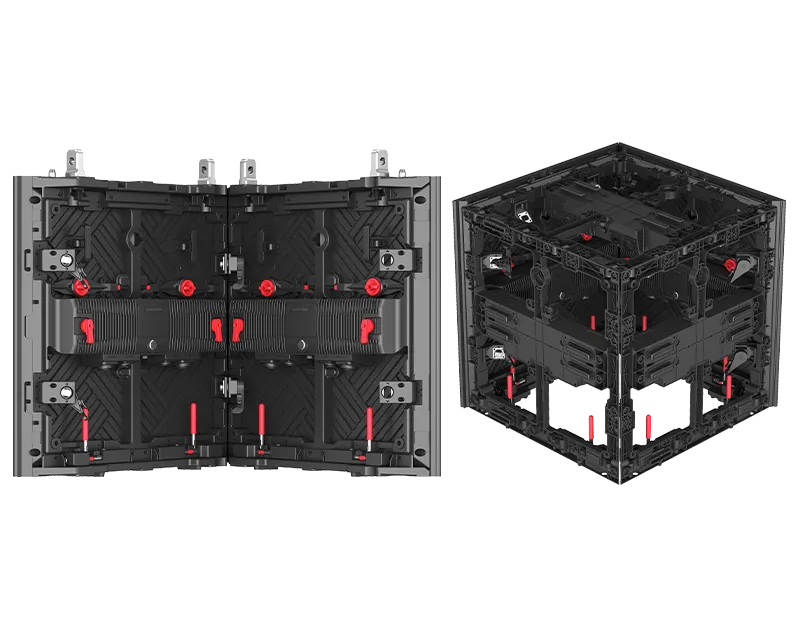

90° Splicing

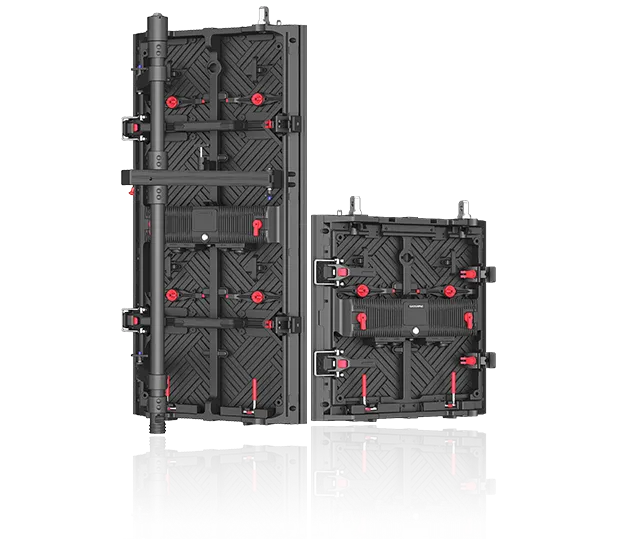

Optional 45° beveled cabinets are available for creating right-angled corners, cubic columns, and cubes.The big cabinet ZS Pro II supports 90° splicing on the left/right sides, while the small cabinet ZM Pro II supports 90° splicing on all four sides.

Curved Splicing

ZS Pro II Series supports curved splicing with adjustable angles:-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°.

Applications

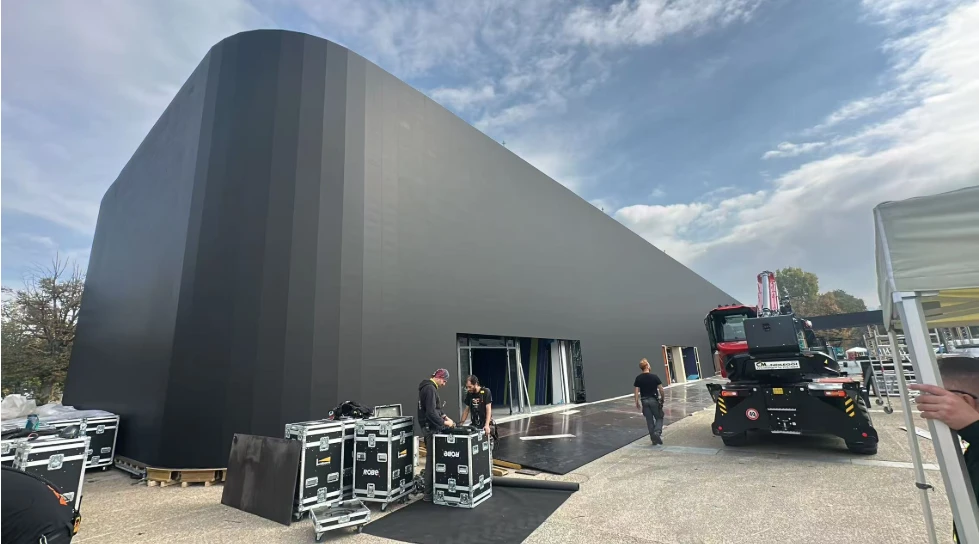

Building Wall Advertising Screen

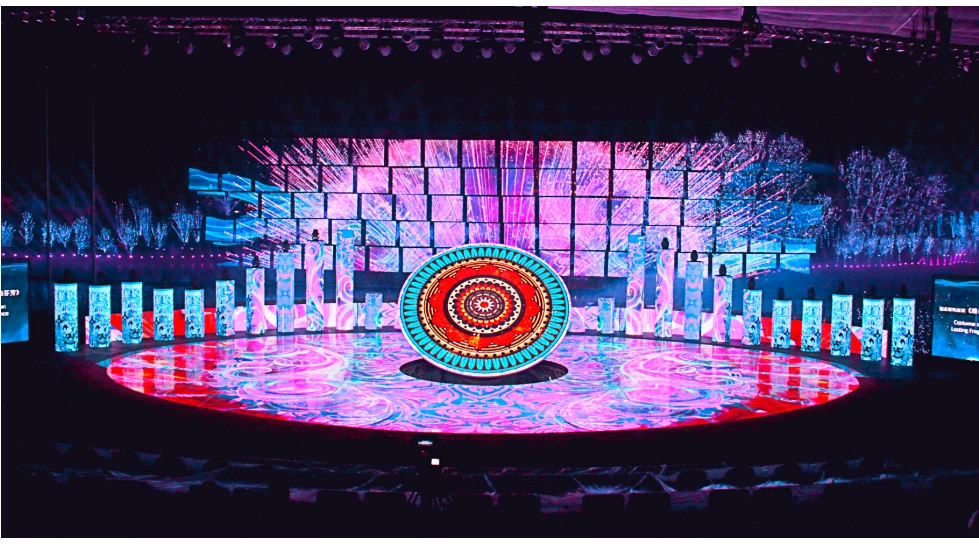

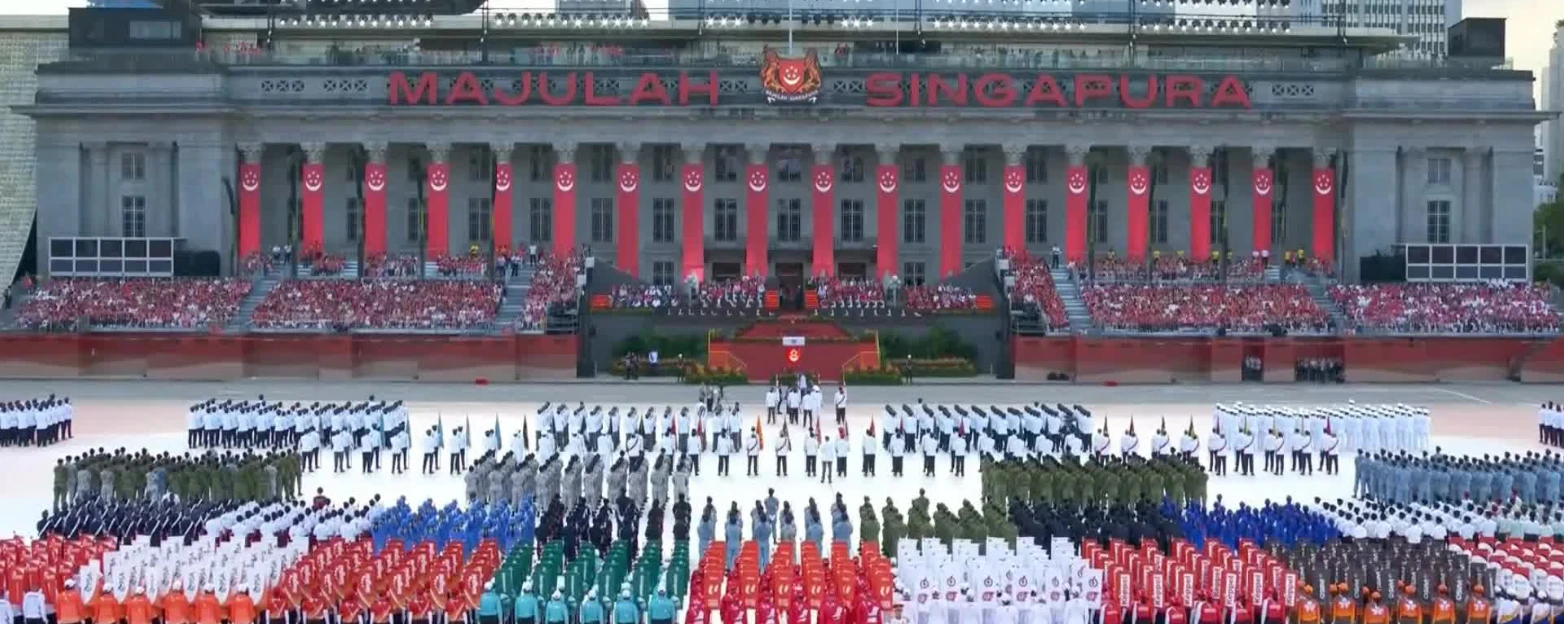

Celebration Events

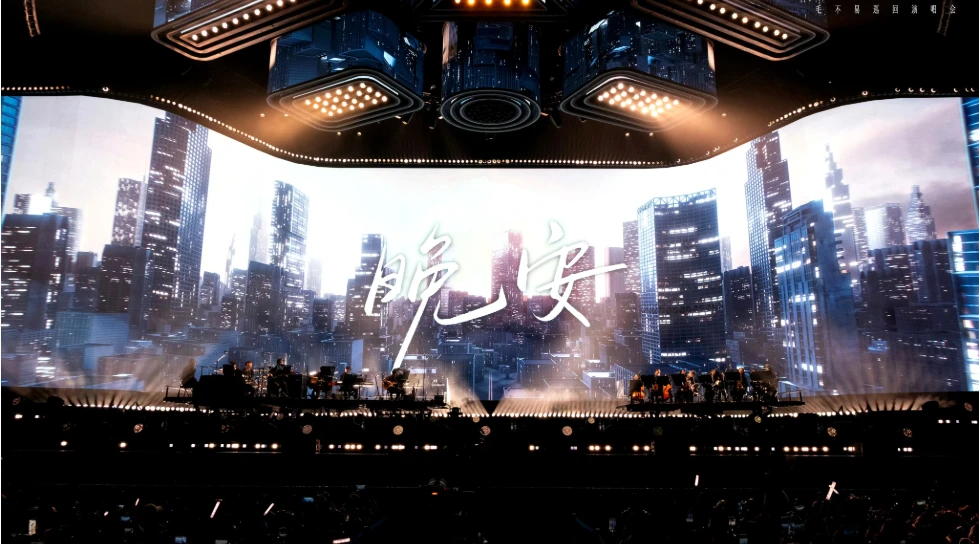

Concert

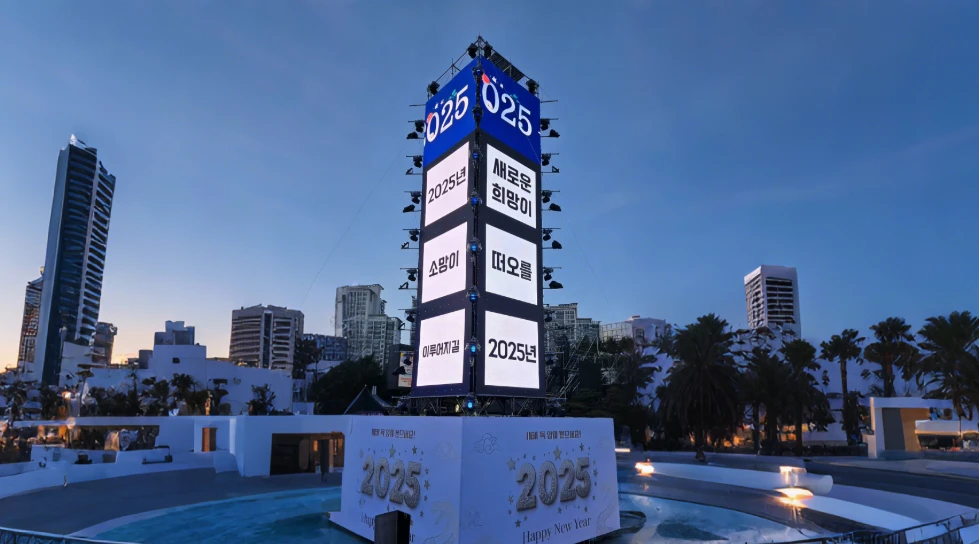

Outdoor Advertising

ZS PRO Ⅱ Series Brochure

ZS PRO Ⅱ Series Brochure

Specification Sheet

Download the form

Model No.

ZS ProⅡ3.9/ZM ProⅡ3.9

ZS ProⅡ5.9/ZM ProⅡ5.9

Pixel Pitch

3.9mm

5.9mm

LED Type

SMD1921/Black SMD1921

SMD1921/Black SMD1921

Packaging techinque

SMD

SMD

Pixel Density

65536/㎡

28224/㎡

Panel Dimension

500mm*1000mm*90mm
500mm*500mm*90mm

500mm*1000mm*90mm
500mm*500mm*90mm

Panel Resolution

128*256pixel
128*128pixel

84*168pixel
84*84pixel

Scan Rate

1/16 or 1/8

1/7

Brightness

General Brightness for Black LEDs:2800~3100nits

High Brightness for Black LEDs:3500~4000nits

General Brightness for White LEDs:3500~4500nits

High Brightness for White LEDs:4500~5000nits

General Brightness for Black LEDs:2500~3000nit

High Brightness for Black LEDs:3500~4000nits
General Brightness for White LEDs:3500~4500nits

High Brightness for White LEDs:4500~5000nits

Refresh Rate

3840Hz/7680Hz

Gray Scale

14-16Bit

Color Temperature

6500-9500K

Panel Weight

ZS ProⅡ:13.8kg±10%,ZM ProⅡ:9.5kg±10%

Cabinet Material

Die-Casting Aluminum

Max Power Consumption

750W/㎡

Ave Power Consumption

380W/㎡

Viewing Angle

H:160°/V:140°

Working Voltage

AC200-240V~50/60Hz or AC100-240V~50/60Hz

IP Rating

Front IP65/Rear IP54

Serviceability

Module: Front/Rear Maintenance;Power Box: Rear Maintenance

Curve

-10°/-5°/0°/5°/10°

Max Stacking/Hanging

With Wind-Bracing System20m/Without Wind-Bracing System10m

Operating Temp/Humidity

-20℃~+45℃;10%~90%RH

Storage Temp/Humidity

-40℃~+60℃;10%~60%RH

Processing platform

Novastar/Colorlight/Magnimage


Accessories

Flight case

Dolly

Air Frame

Signal cable

Signal cable
