AF II Series

Professional COB/MIP LED Display

P:0.7/0.9/1.2/1.5/1.8

Core features

The AF II series employs MIP (Microchip-in-Package) technology, effectively enhancing image quality to achieve ultra-high contrast , while reducing Moiré patterns and minimizing glare for comfortable viewing. It simultaneously supports 5G signal transmission and common cathode energy-saving power supply, making it widely applicable across various scenarios such as command centers, monitoring centers, studios, conferences, education, and retail.

Quick Maintenance

High Stability

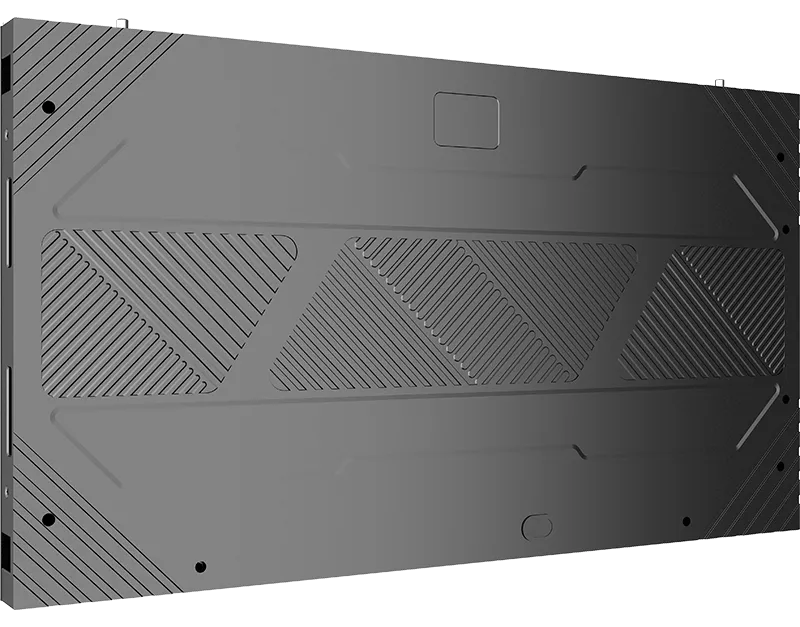

Efficient Heat Dissipation

Energy Saving

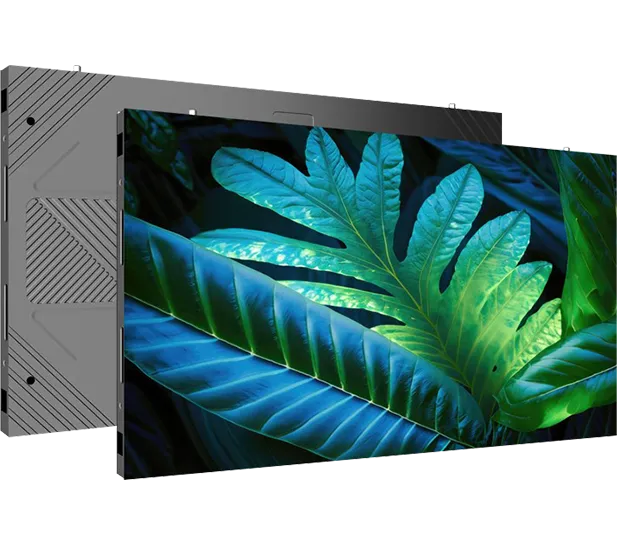

Extremely Slim & Light

AF II series features a 16:9 cabinet dimension, with a thickness of only 33cm and a weight of merely 5kg. Supports wall-mounting installation, saving space for a clean and aesthetic appearance.

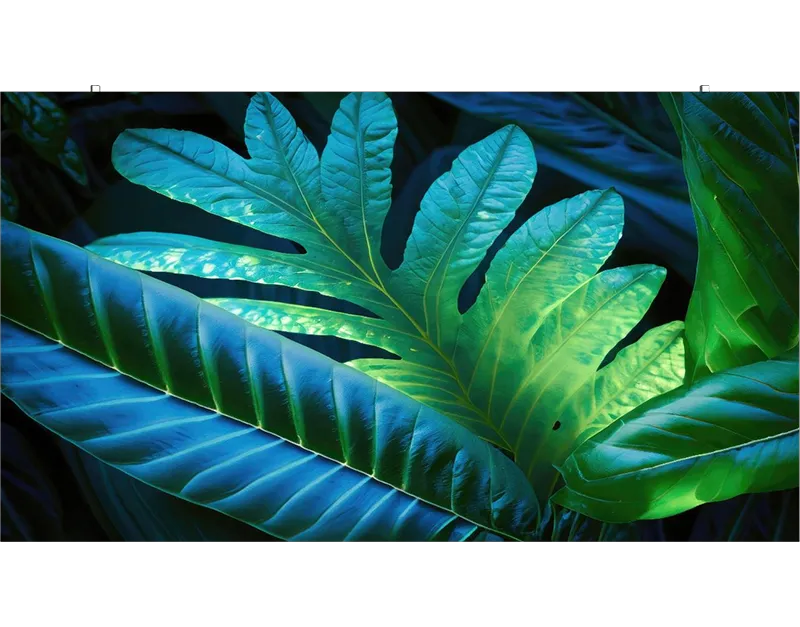

MIP (Micro-chip in Package) Technology(Optional)

Refined light-emitting units effectively enhance image quality, achieving ultra-high contrast, detailed imagery and extremely pure colors, effectively reducing the moiré pattern and providing a non-reflective viewing experience.

Common Cathode Energy Saving(COB Optional)

Supports common cathode power supply, significantly reducing the screen power consumption, lowering temperature to control light decay, and extending service life.

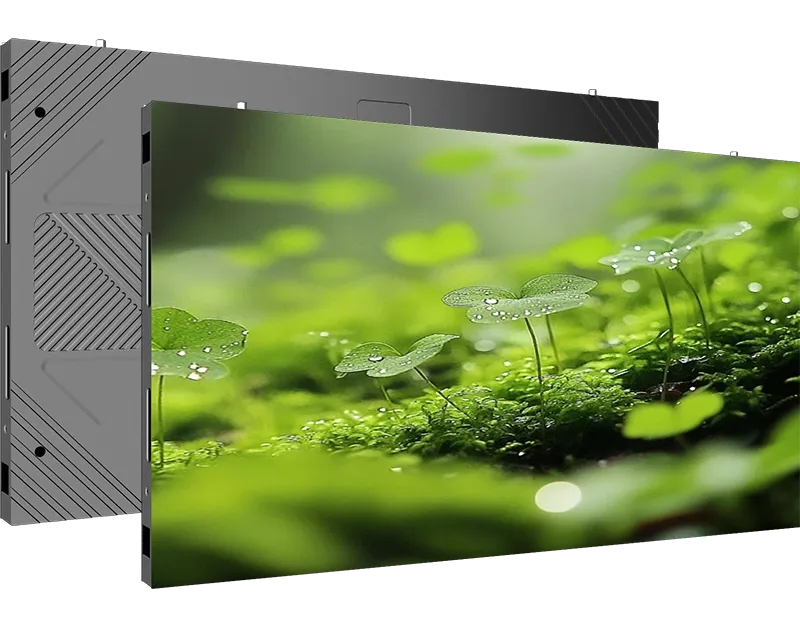

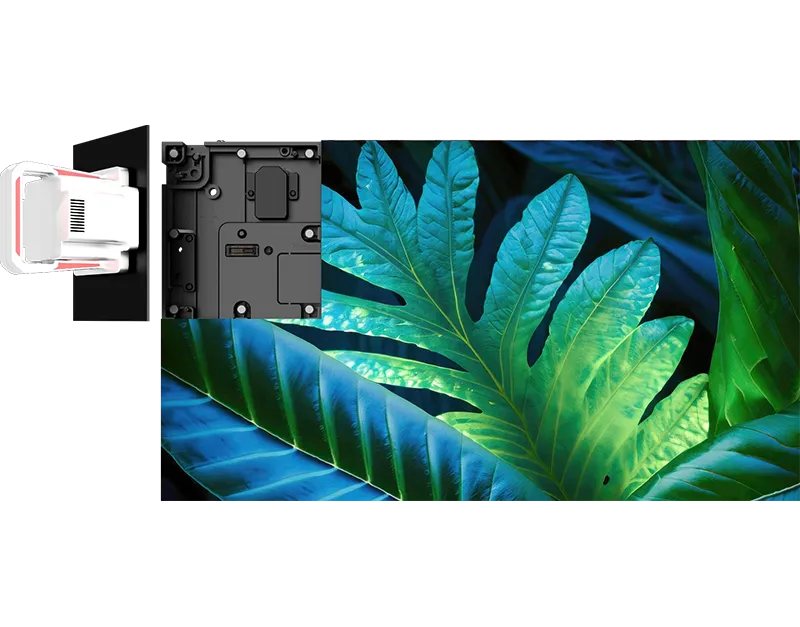

Easy Maintenance

Features a magnetic modules design, no need to disassemble the entire unit, one single person can perform rapid maintenance, greatly reducing maintenance time and cost.

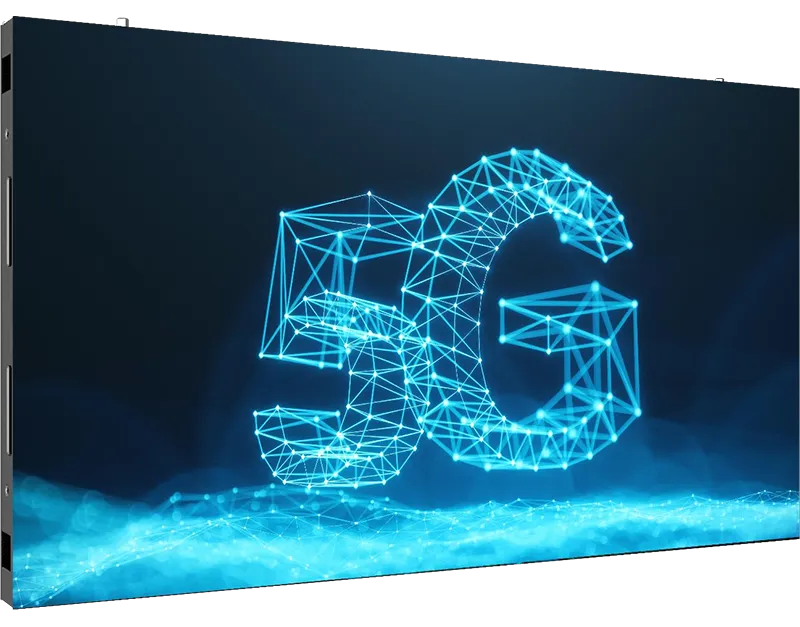

5G Signal Transmission (Optional)

Offers high-speed, low-latency transmission, millisecond-level precise control, and 8K ultra-high-definition display.

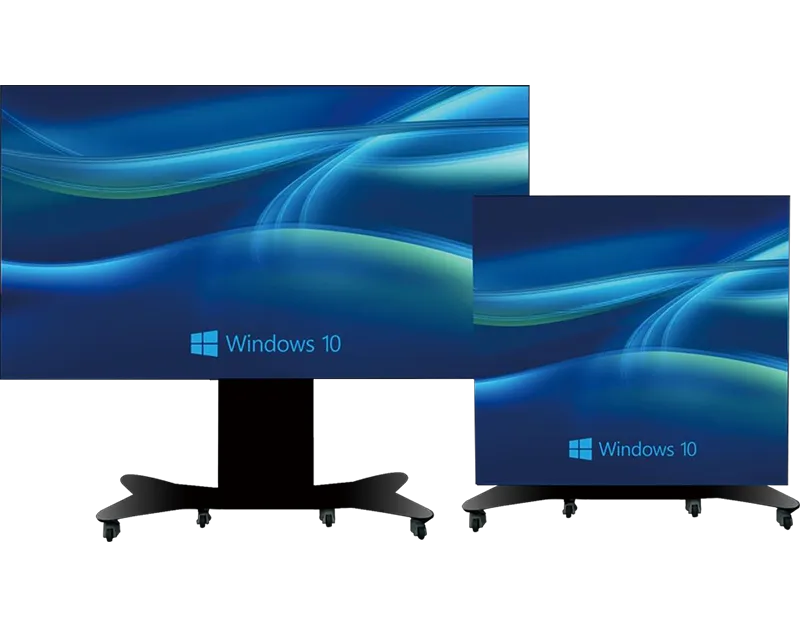

Multi-Scenario Application

Can be paired with dedicated stands to assemble all-in-one screen and poster displays. Adaptable to various usage scenarios such as meetings, education, and retail.

Applications

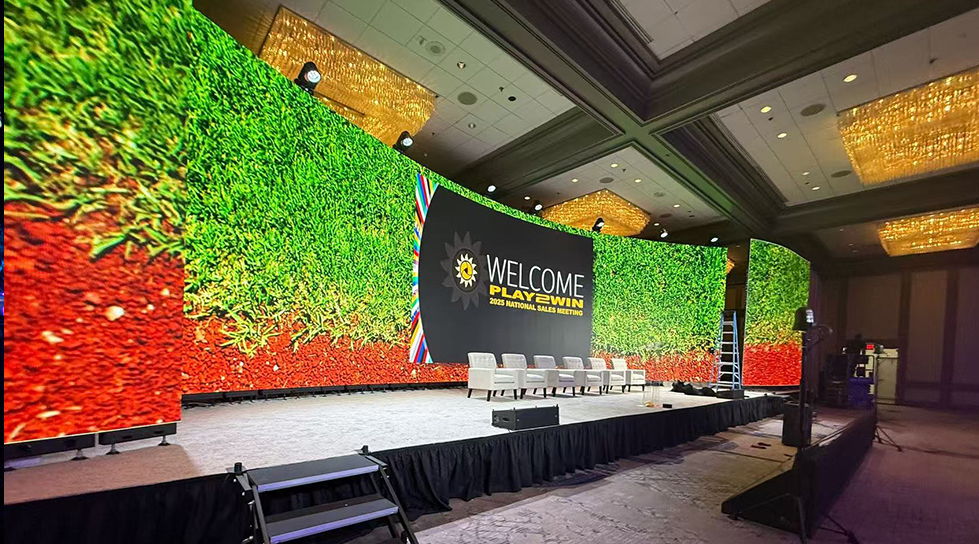

Conference and Exhibition

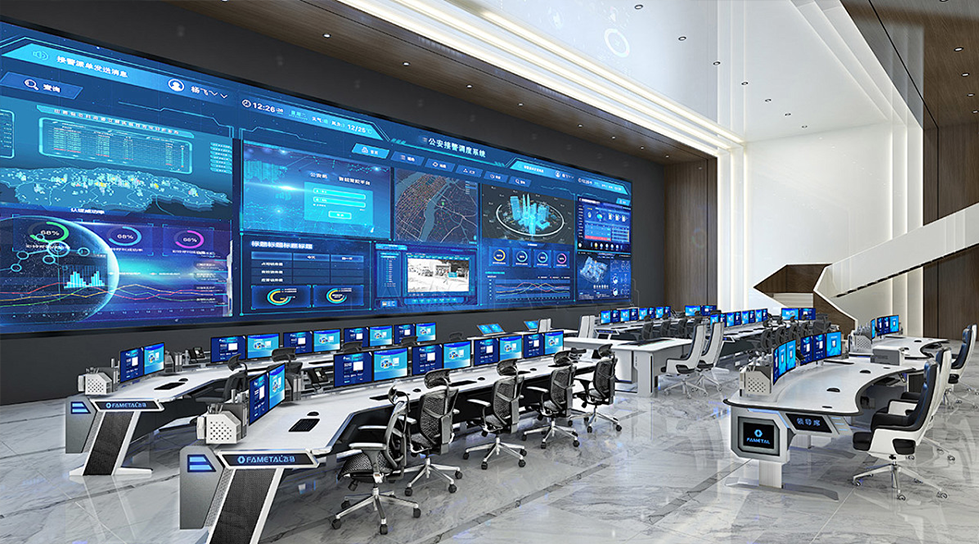

control center

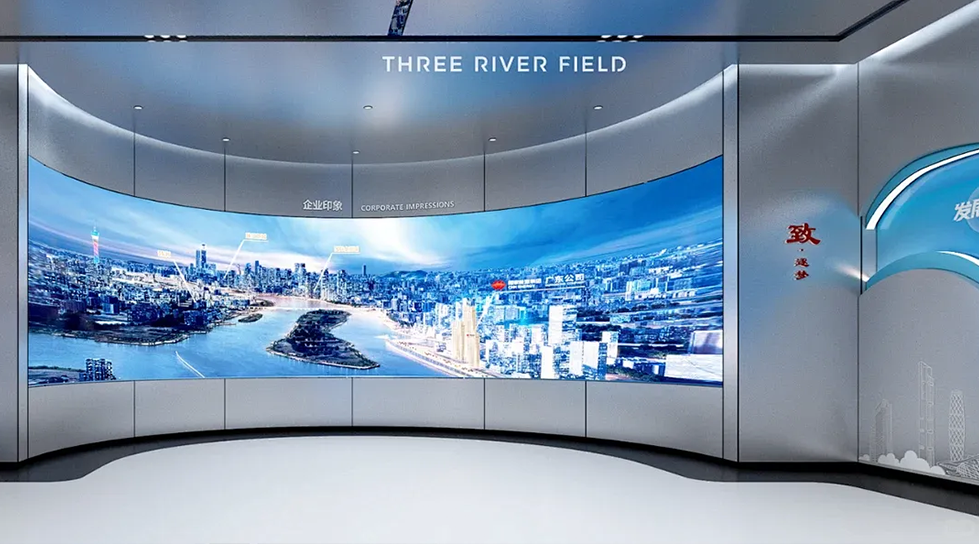

Exhibition Hall

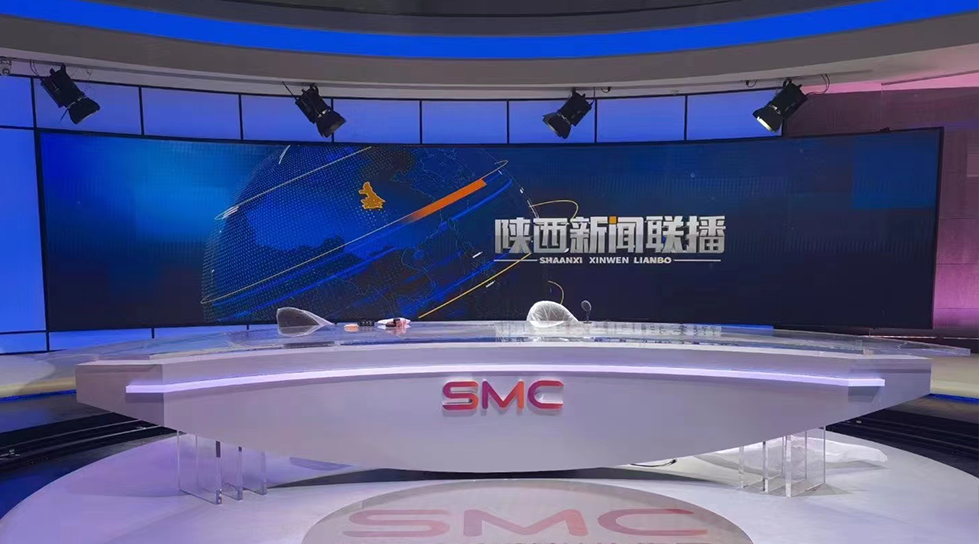

Broadcasting and Studios

Specification Sheet

Download the form
Application ScenarioIndoor
Model No.AFⅡ0.6AFⅡ0.7AFⅡ0.9AFⅡ1.2AFⅡ1.5AFⅡ1.8
Pixel Pitch0.6250.781250.93751.251.56251.875
LED TypeMIP0202COBMIP0404MIP0606MIP0606COBSMD1010MIP0202COBCOBCOBSMD TOP1212SMD TOP1515COB
Packaging techinqueMIPCOBMIPMIPMIPCOBSMD TOPMIPCOBCOBCOBSMD TOPSMD TOPCOB
Pixel Density(pixel/㎡)256000016384001638400113777711377771137777640000640000640000640000409600409600284444284444
Panel Dimension(mm)600*337.5*32600*337.5*32600*337.5*32600*337.5*32600*337.5*32600*337.5*32
Panel Resolution(pixel)960x540768*432640*360480*270384*216320*180
Driver RateCCCCCCCCCCCC/CACACACCCCCACACACA
Scan Rate1/901/361/72 1/301/451/54 1/27 1/271/401/601/541/541/451/45
Brightness(nits)600-800600-800600-800800-1000600-800600-800800-10001000600-800600-800600-800600-800600-800600-800
Refresh Rate3840Hz
Gray Scale14-16Bit
Color Temperature6500-9500K
Panel Weight5.5kg±10%
Cabinet MaterialDie-casting Aluminum
Max Power ConsumptionCOB:320W/㎡、SMD:680W/㎡
Ave Power ConsumptionCOB:95W/㎡、SMD:340W/㎡
Viewing AngleH:160°/V:160°
Working VoltageAC200-240V~50/60Hz or AC100-240V~50/60Hz
IP RatingModule: Front IP65, Panel: Front IP30 (SMD: IP30)
ServiceabilityFront
CurveSupports flat screen
Max Stacking/HangingSupports stacking instalation
Operating Temp/Humidity-20℃~+45℃;10%~60%RH
Storage Temp/Humidity-40℃~+60℃;10%~60%RH
Processing platformNovastar/Colorlight
Product CertificationEMC/LVD/FCC/ETL/RCM/CCC
