DN-Series-Outdooor

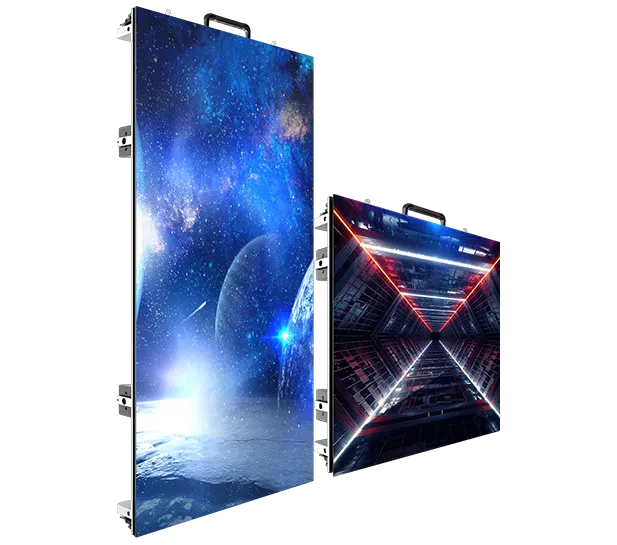

Ultra-Lightweight High-Definition Stage Display

P2.6/2.9/3.9

Core features

The DN series features an ultra-thin and light cabinet design, offering quick installation and disassembly, easy maintenance, strong stability, and versatile configurations. The entire series supports high-performance display specifications such as a 7680Hz refresh rate, high contrast ratio, 16-bit high grayscale, and a 160° ultra-wide viewing angle, delivering a superior visual experience.

Magnetic Module

Curved splicing

90° splicing

High refresh rate

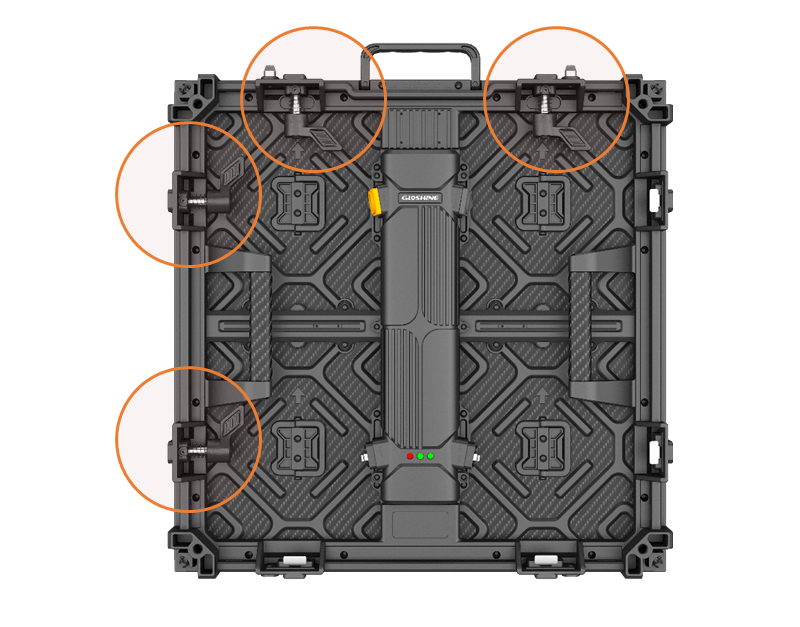

Dual Top/Side Locks Design

Dual top/side locks for each cabinet.Steel core with spring locking system.· Efficient and quick installation· Seamless splicing

Anti-collision Design(Optional)

Protecting corner lamp beads from being damaged by collisions.

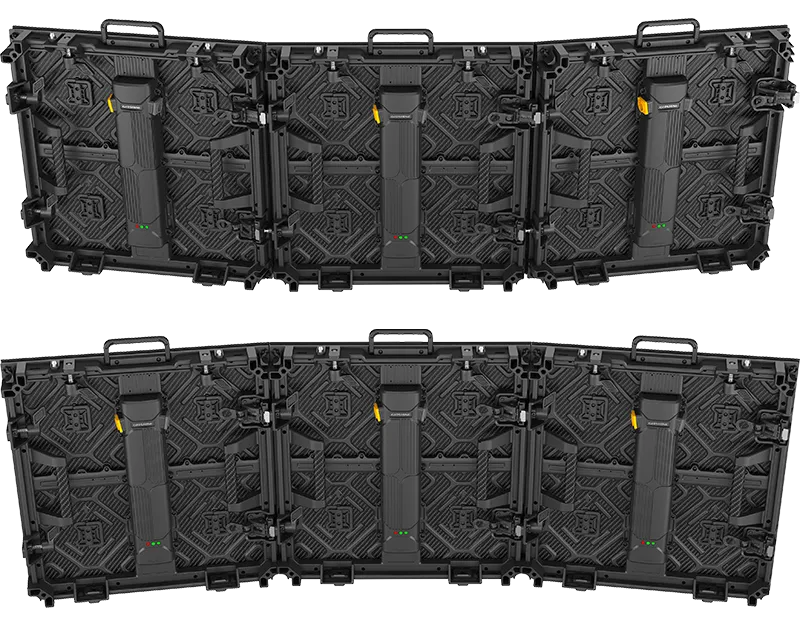

Curved Shape

DN & DN Plus Series available splicing for curved shape.Easy radian adjustment, efficient installation.Curved cabinet/45° beveled cabinet Angle Adjustment：-10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10°.

Cubic Column/Cube/Vertical Splicing

DN supports four-sided cutting edge.DN Plus supports two-side cutting edge (left and right).

Stacking Installation

Maximum Stacking and Hanging Height: 10 Meters.

Applications

Conference

Automobile exhibition

Concert

Gala show

Brochure

DN Series Outdoor

Specification Sheet

Download the form

Model No.

DN-B/DN PLUS-B2.6(outdoor)

DN-B/DN PLUS-B2.9(outdoor)

DN-B/DN PLUS-B3.9(outdoor)

Pixel Pitch

2.6mm

2.9mm

3.9mm

LED Type

SMD1415

SMD1415

SMD1921

Packaging techinque

SMD

SMD

SMD

Pixel Density

147456 pixel/㎡

112896 pixel/㎡

65536 pixel/㎡

Panel Dimension

DN PLUS-B:500mm*1000mm*76mm
DN-B:500mm*500mm*76mm

DN PLUS-B:500mm*1000mm*76mm
DN-B:500mm*500mm*76mm

DN PLUS-B:500mm*1000mm*76mm
DN-B:500mm*500mm*76mm

Panel Resolution

DN PLUS-B:192*384 pixel
DN-B:192*192 pixel

DN PLUS-B:168*336 pixel
DN-B:168*168 pixel

DN PLUS-B:128*256 pixel
DN-B:128*128 pixel

Scan Rate

1/24 or 1/16

1/21 or 1/14

1/8 or 1/16

Brightness

General Brightness of Black LEDs:2500-3000nits

High Brightness of Black LEDs:3000-3500nits
General Brightness of White LEDs:3000-3500nits

High Brightness of White LEDs:4000-4500nits

General Brightness of Black LEDs:2500-3000nits

High Brightness of Black LEDs:3000-3500nits
General Brightness of White LEDs:3000-3500nits

High Brightness of White LEDs:4000-4500nits

1/8

General Brightness of Black LEDs:2800-3100nits

High Brightness of Black LEDs:4000-4500nits
General Brightness of White LEDs:4000-4500nits

High Brightness of White LEDs:5000-5500nits

1/16

General Brightness of Black LEDs:2300-2500nits

High Brightness of Black LEDs:3500-3800nits
General Brightness of White LEDs:3500-4000nits

High Brightness of White LEDs:4500-5000nits

Refresh Rate

3840Hz/7680Hz

Gray Scale

14-16Bit

Color Temperature

6500-9500K

Panel Weight

DN-B:7.2kg±10% DN PLUS-B:12.5kg±10%

Cabinet Material

Die-Casting Aluminum

Max Power Consumption

580w/㎡~720w/㎡

Ave Power Consumption

290w/㎡~360w/㎡

Viewing Angle

H:160°/V:140°

Working Voltage

AC200-240V~50/60Hz or AC100-240V~50/60Hz

IP Rating

Front IP65,Rear IP54

Serviceability

Rear

Curve

Curved cabinet/45° beveled cabinet(±10° curved lock):-10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10°
90° lock or 90° connector plate can do vertical splicing

Max Stacking/Hanging

10m

Operating Temp/Humidity

-20℃~+45℃；10%~90%RH

Storage Temp/Humidity

-40℃~+60℃；10%~90%RH

Processing platform

Novastar/Magnimage/Colorlight

Product Certification

MET/CE/EMC


Accessories

Curved lock

Side lock

Flight case

Knob

Vacuum suction tool

Power cable

Signal cable
