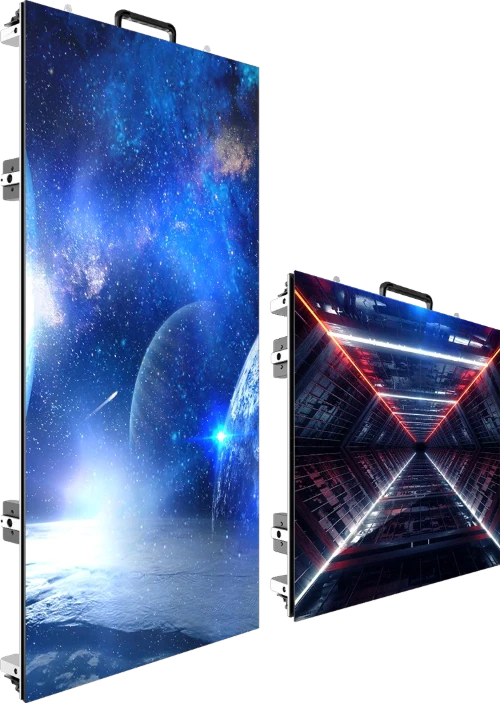

CS II Series
Creative Irregular Screen
P2.6/2.9/3.9(indoor),P3.9/4.8(outdoor)
Core features

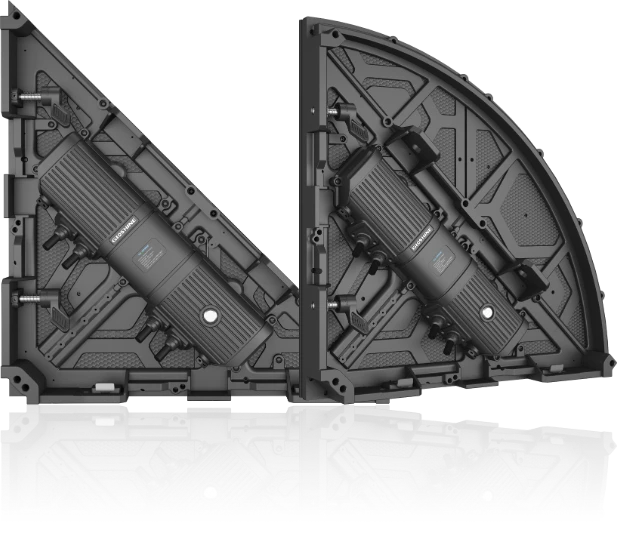

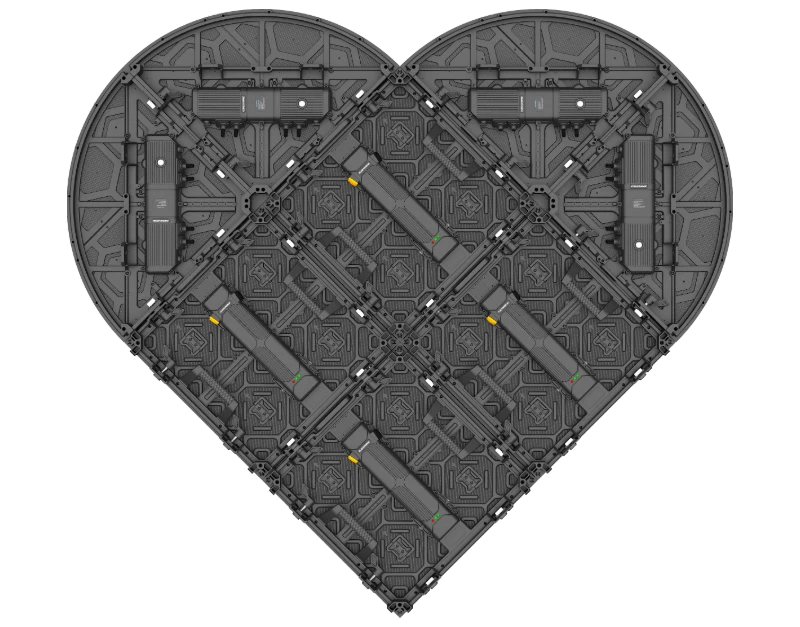

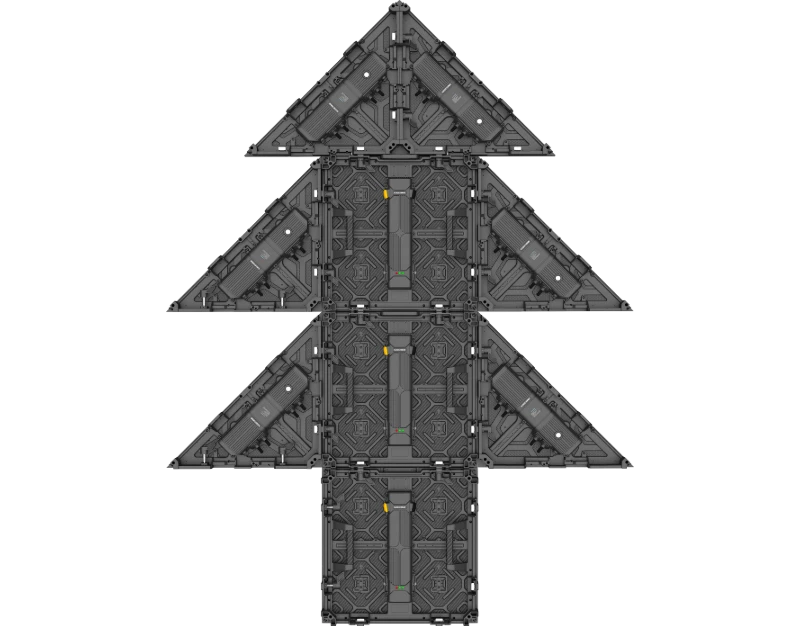

Available in triangular and sector cabinet options, with four angle configurations: top-left, bottom-left, top-right, and bottom-right. The cabinets are highly compatible and can be seamlessly with DN-B, ZM III, CB-S/H, MV PRO, LE mini series cabinets, allowing flexible assembly into various regular and irregular shapes to meet the diverse needs of stage performances. It is the preferred creative display solution for indoor and outdoor stage performances/rentals, exhibitions, and commercial displays.

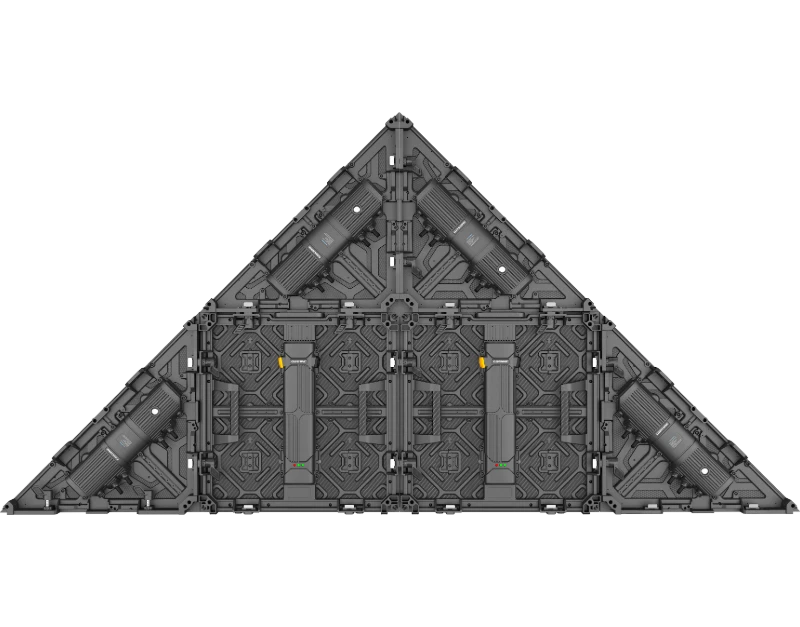

Triangle Screen
Waterproof
HD

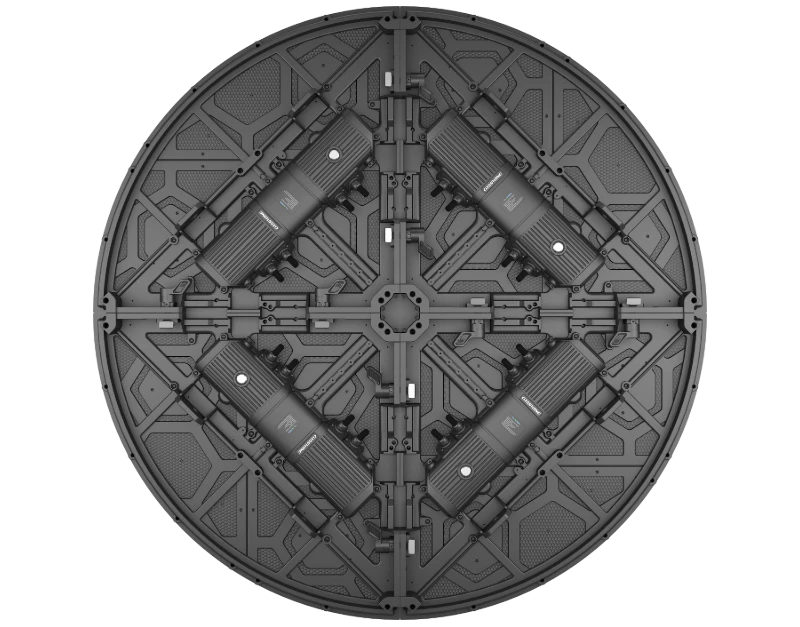

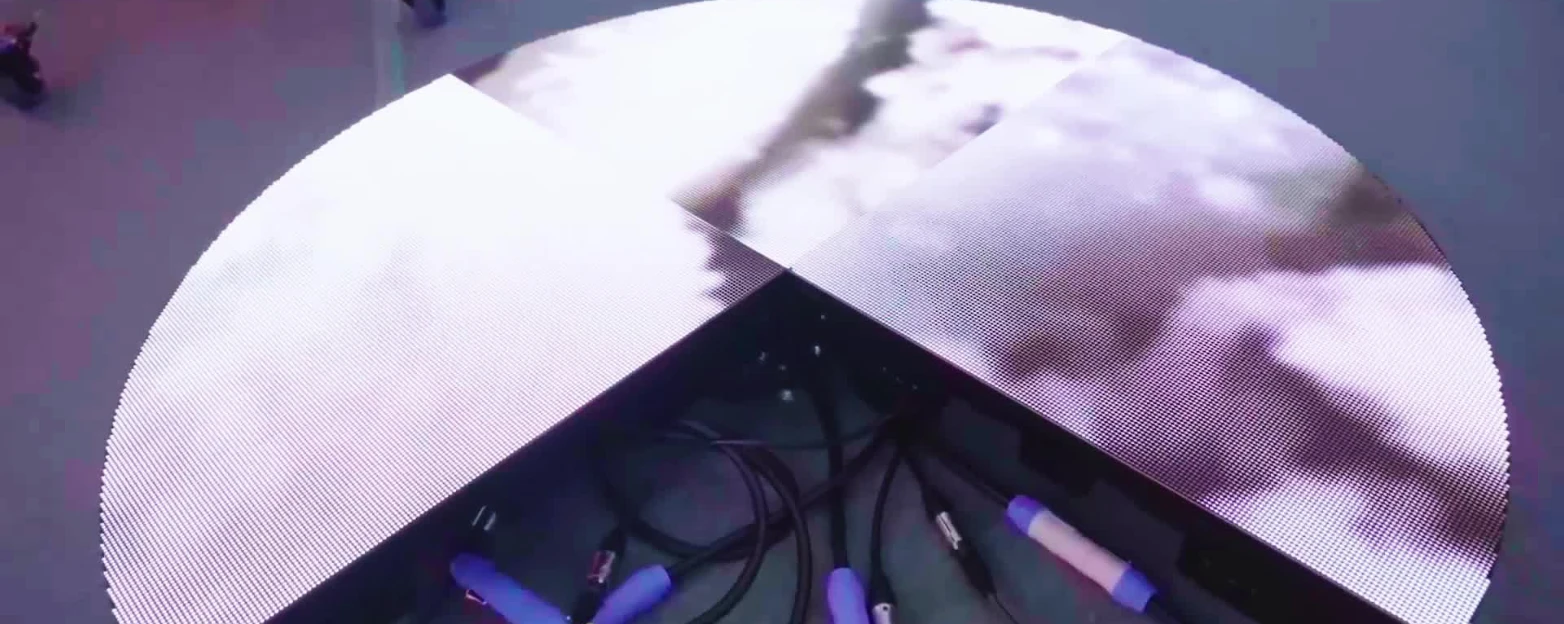

Sector Screen
Applications

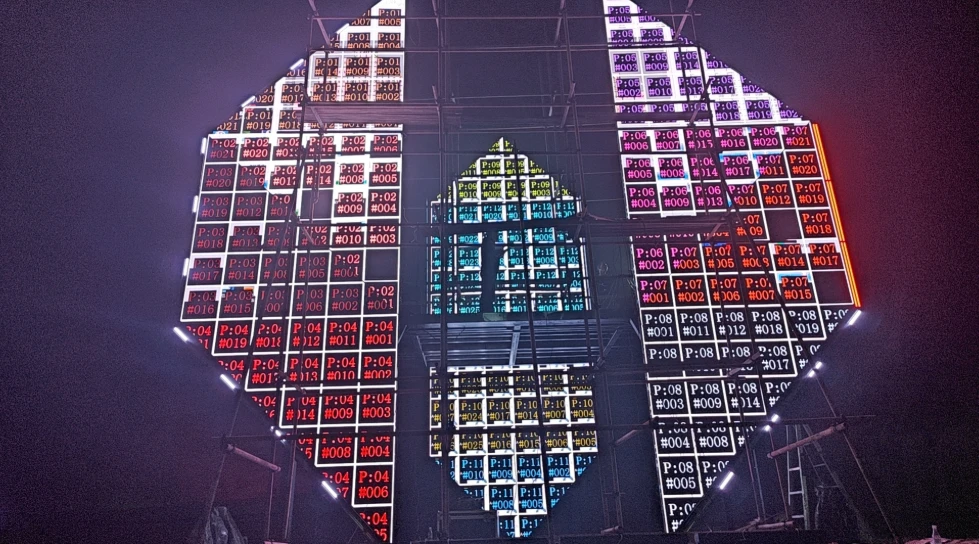

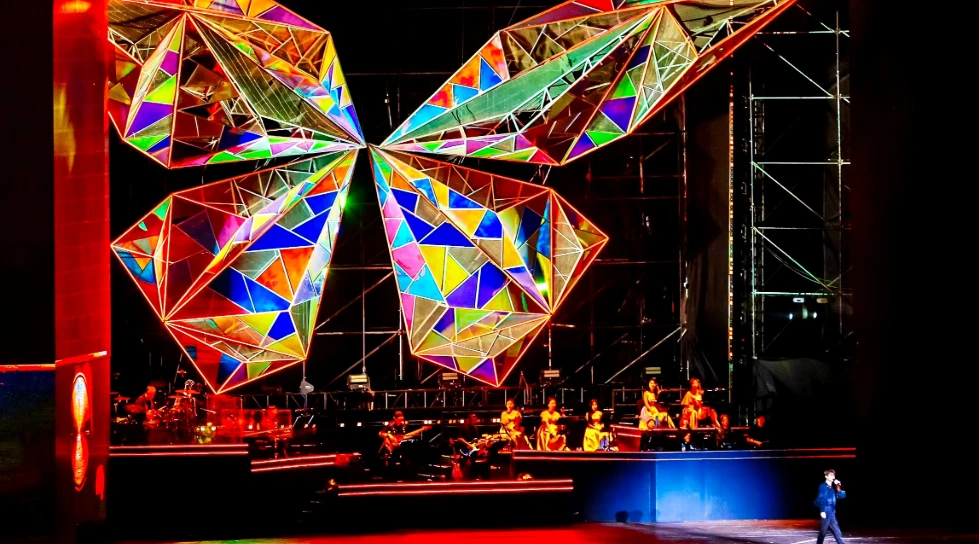

Concerts
Creative Signage
Cultural Tourism
Exhibitions
Brochure
CS II Series
Specification Sheet
Download the form
Application Scenario | Indoor | Outdoor | ||||
Model No. | CSII1.95 | CSII2.6 | CSII2.9 | CSII3.91 | CSII3.91 | CSII4.81 |
Pixel Pitch | 1.95mm | 2.6mm | 2.97mm | 3.91mm | 3.91mm | 4.81mm |
LED Type | 2in1 | SMD1515 Black | SMD2020 Black | SMD2020 Black | SMD1921White/Black | SMD1921White/Black |
Packaging techinque | SMD | SMD | SMD | SMD | SMD | SMD |
Pixel Density | 262144pixel/㎡ | 147456pixel/㎡ | 112896pixel/㎡ | 65536pixel/㎡ | 65536pixel/㎡ | 43264pixel/㎡ |
Scan Rate | 1/16 | 1/24 | 1/21 | 1/16 or 1/8 | 1/16 or 1/8 | 1/13 or 1/7 |
Brightness | 800～1200 nits | 800～1200 nits | 800～1200 nits | 800～1200 nits | General Brightness for Black LEDs::2300～2500nits High Brightness for Black LEDs:3500～3800nits General Brightness for White LEDs:3500～4000nits High Brightness for White LEDs:4500～5000nits | |
Refresh Rate | 3840Hz/7680Hz | |||||
Gray Scale | 14-16bit | |||||
Color Temperature | 6500-9500K | |||||
Panel Weight | 6kg±10%(Sector Screen), 7.5kg±10%(Triangle Screen) | |||||
Cabinet Material | Die-casting Cabinet | |||||
Max Power Consumption | ≤580w/㎡ | |||||
Ave Power Consumption | ≤290w/㎡ | |||||
Viewing Angle | H:160°V:140° | |||||
Working Voltage | AC100-240V~50/60Hz or AC200-240V~50/60Hz | |||||
IP Rating | IP30 | Front IP65/RearIP54 | ||||
Serviceability | Rear | |||||
Curve | / | |||||
Max Stacking/Hanging | 10m | |||||
Operating Temp/Humidity | -20℃~+45℃；10%~60%RH | -20℃～+45℃；10%～90%RH | ||||
Storage Temp/Humidity | -40℃~+60℃；10%~60%RH | |||||
Processing platform | Novastar/Colorlight/Magnimage | |||||
Product Certification | ROHS | |||||
Accessories
Flight Case
Power Cable
Side Lock
Signal Cable
