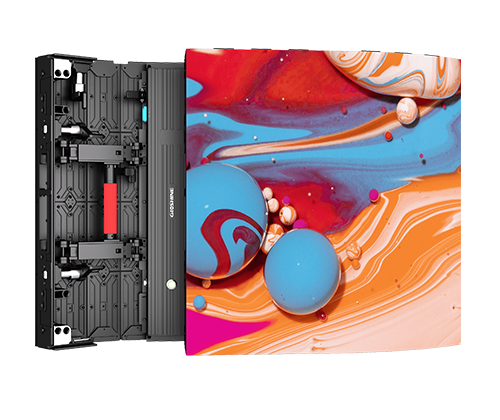

MT55 Series

LProfessional Exhibition LED Display

P1.2/1.5/1.9/2.3

Core features

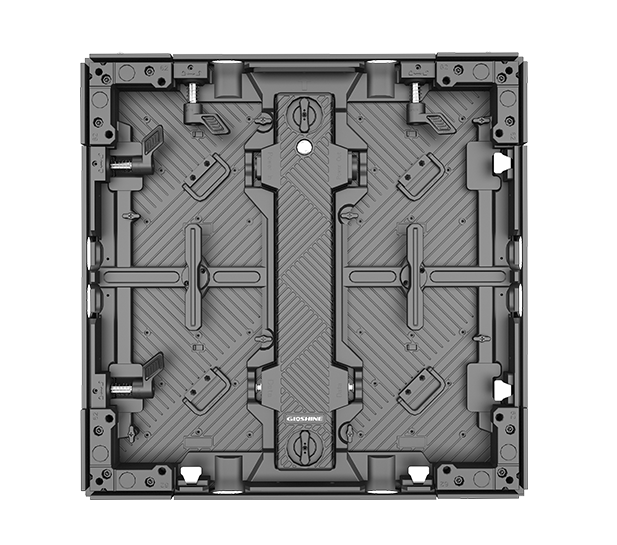

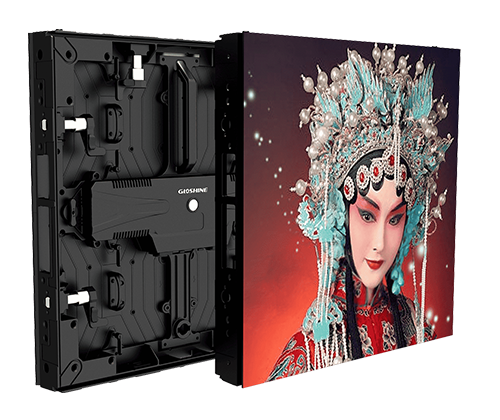

The MT55 Series achieves a cabinet thickness of 496*496*55mm/62mm by adding gaskets, perfectly compatible with the Bematrix display frame, balancing creative presentation with brand visual identity. It also supports creative shapes such as right-angle and column configurations, and is suitable for both hanging and floor-standing rental display scenarios, making it a professional LED display for exhibitions and showcases.

Ultra-high precision

Quick maintenance

90° Splicing

HD Display

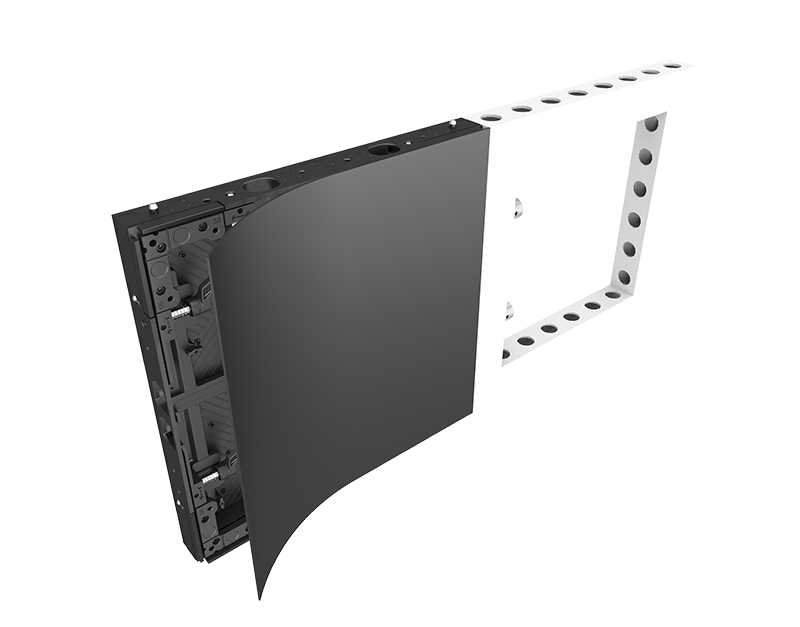

Optional thickness , flexible and diverse application requirement

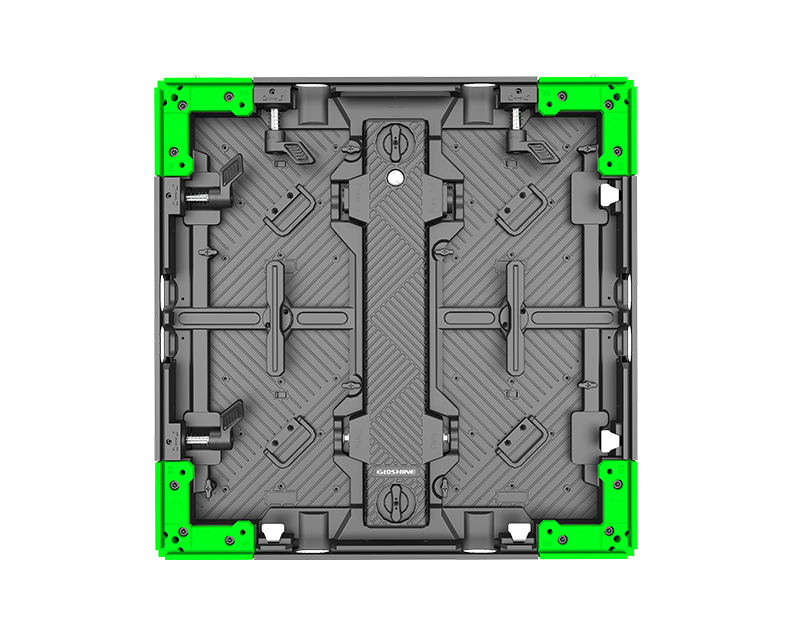

The thickness of the panel can be adjusted to496*496*55mm/62mm by adding corner plate, whichmatches the common frames in the market

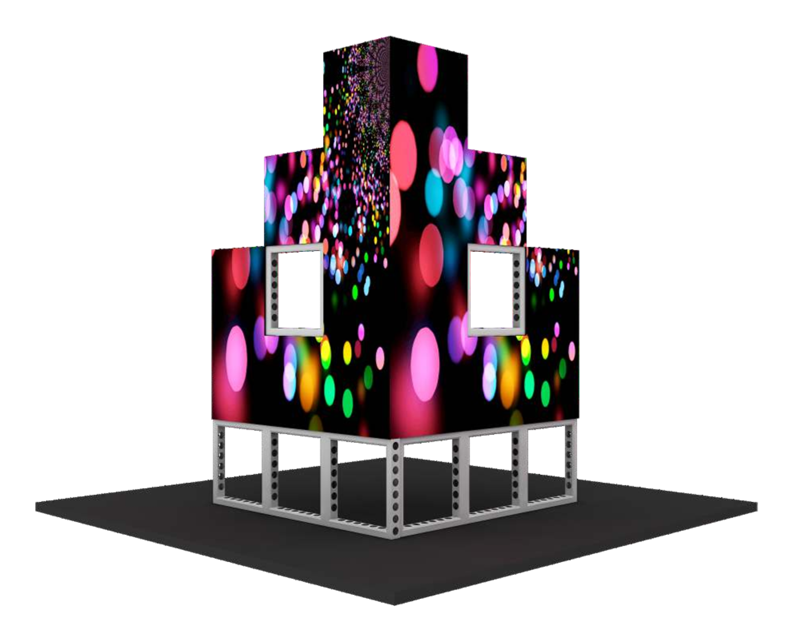

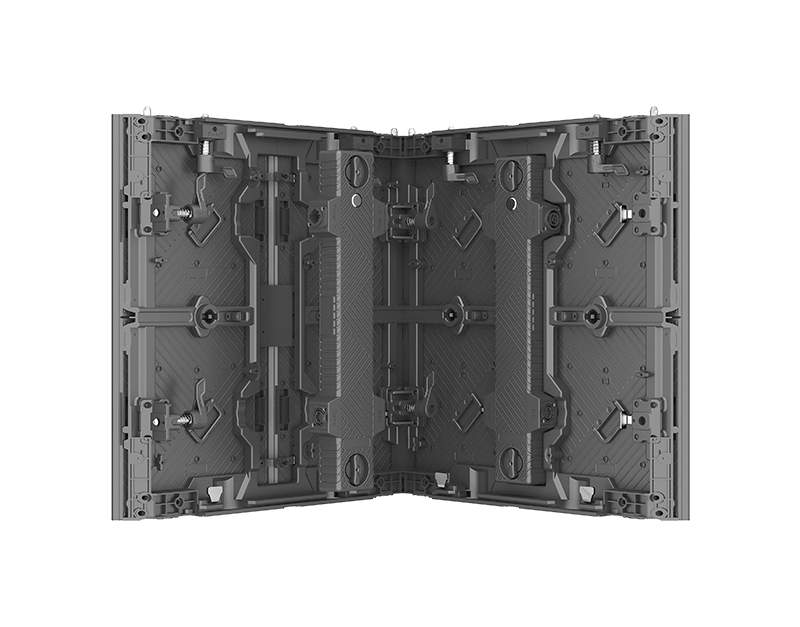

Support corner panels installation, unlimited creativity

The panel can be cut 45 °on both two sides to make cornerpanel and build column shape with fastener cornerlocks, which is fast and easy installation.

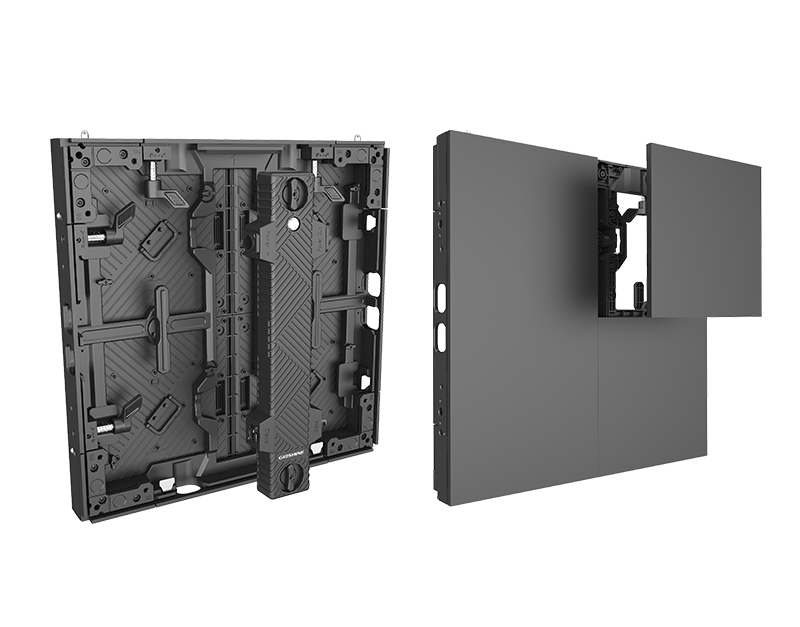

Convenient maintenance, save your energy and effort

Support front and rear maintenance for module, power supply, HUB, easy to be compatiblewith different use scenarios; Integrated back cover knob design, easy to remove and replace.

Multiple Installation way, Suitable for Multiple project

MT55/62 Series is compatible with 55/62mm frame system and allows operators to install from the frontand back, helping save time and labor costs, delivering a professional and efficient display solution. It isalso suppotrs stacking and hanging installation.

Optional customized back panel

Customized back-cover design can effectively cover the box cable. users can choose theback-cover material, color, pattern, etc., according to the needs of the perfect integrationinto the overall design style in the display, to enhance the brand image.

Specification Sheet

Download the form

Model No.

MT55/62 1.2(Indoor)

MT55/62 1.5(Indoor)

MT55/62 1.9(Indoor)

MT55/62 1.9(Indoor)

MT55/62 1.9(Indoor)

MT55/62 1.9(Indoor)

MT55/62 2.3(Indoor)

Plxel Pitch

1.29mm

1.55mm

1.93mm

1.93mm

1.93mm

1.93mm

2.38mm

LED Type

SMD1010

SMD1212

SMD1515

S-SMT 1212

Two in one

Mini Four in one

SMD1515

GOB/HOB

GOB/HOB

GOB/HOB

GOB/HOB

/

/

/

/

Pixel Density

589,824pixel/m²

409,600pixel/m²

262,144pixel/m²

262,144pixel/m²

262,144pixel/m²

262,144pixel/m²

173,056pixel/m²

Brightness

500-800nits

700-1000nits

700-1000nits

900-1100nits

700-1000nits

900-1100nits

800-1200nits

Color Temperature

6500-9500K

Scan Rate

1/32

1/16 or 1/40

1/16 or 1/32

1/8 or 1/16 or 1/32

1/16 or 1/32

1/32

1/26

Panel Dimension(W*H*D)

496*496*55mm/19.5"x19.5"x2.1"
496*496*62mm/19.5"x19.5"x2.4"

Panel Resolution

384*384pixel

320*320pixel

256*256pixel

256*256pixel

256*256pixel

256*256pixel

208*208pixel

Panel Weight

MT55&62:8.8kg±10%/19.84lb±10%

Cabinet Material

Die-Casting Cabinet

Max Power Consumption

≤580w/m²

Ave Power Consumption

≤290w/m²

Viewing Angle

H:160° V:140°

Refresh Rate

7680/3840Hz

Gray Scale

14-16bit

Working Voltage

(Wide Voltage)

AC100-240V~ 50-60Hz

Working Voltage

(Narrow Voltage)

AC200-240V~ 50-60Hz

IP Rating

IP30

Curve

/

Max Stacking/Hanging

8m

Serviceability

Front/Rear

Lifetime

50000h

Operating Temp/Humidity

-20℃-+45℃;10%-60%RH

Storage Temp/Humidity

-40℃-+60℃;10%-60%RH

Processing platform

Novastar/Colorlight /Magnimage/Brompton

Certifications

CE-EMC,CE-LVD,FCC,ETL


Accessories

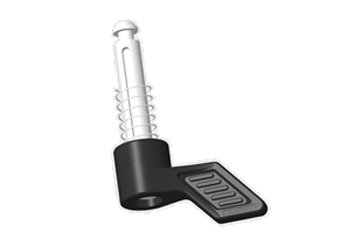

Side Lock

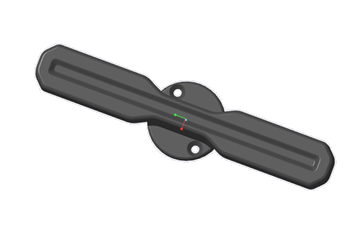

Handle

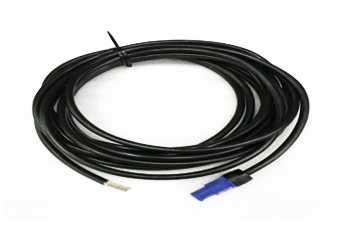

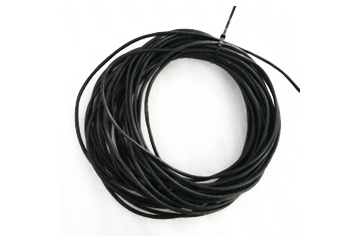

Power cable

Signal cable
