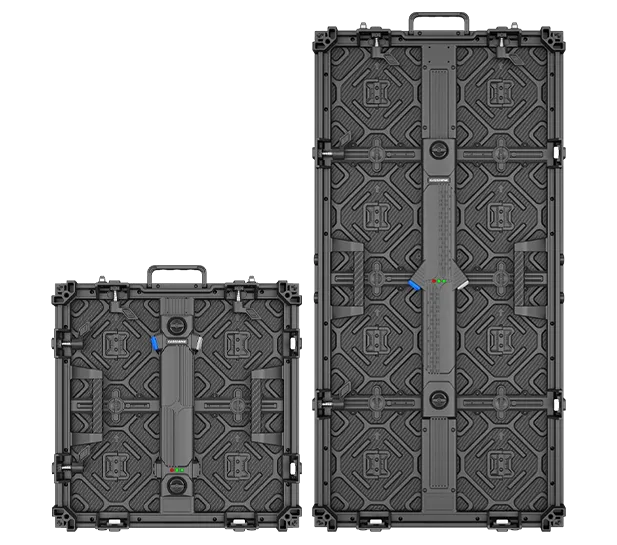

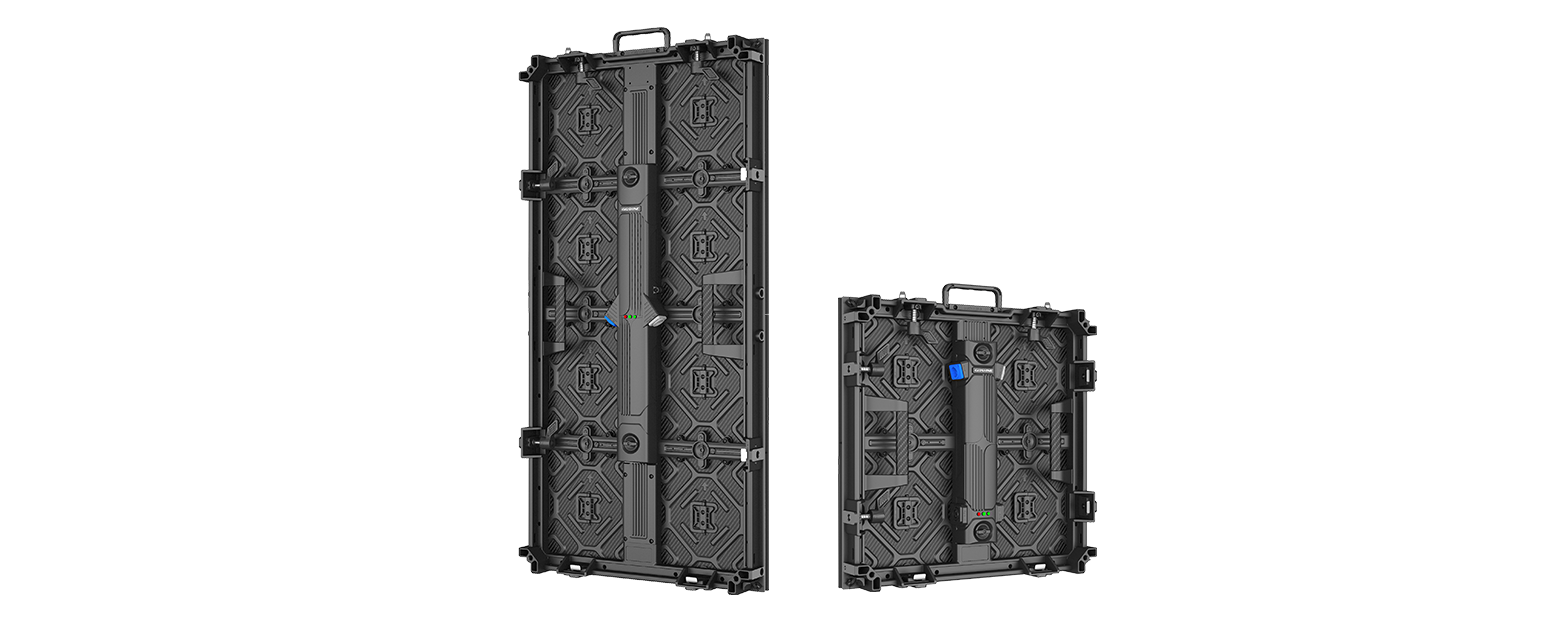

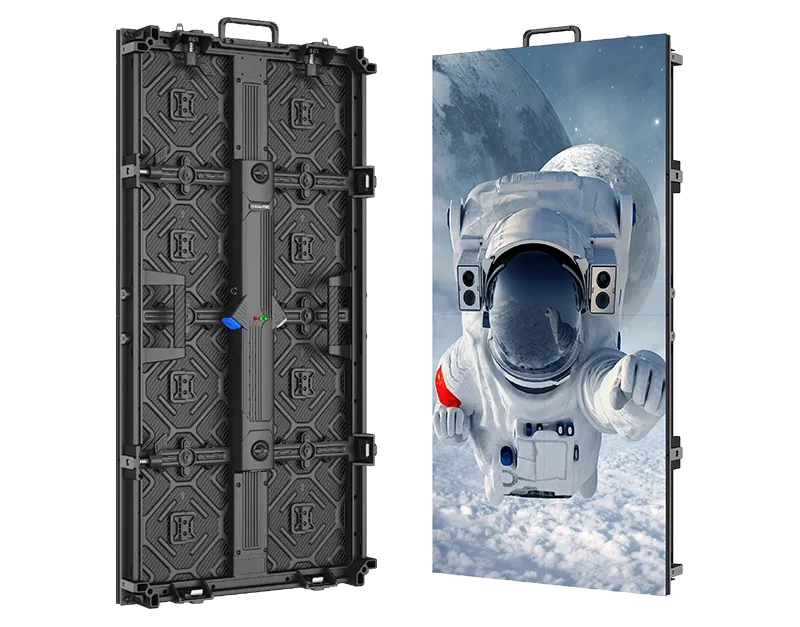

DN-Series-Indoor

Ultra-Lightweight High-Definition Stage Display

P1.2/1.5/1.9/2.6/2.9/3.9

Core features

The DN series features an ultra-thin and light cabinet design, offering quick installation and disassembly, easy maintenance, strong stability, and versatile configurations. The entire series supports high-performance display specifications such as a 7680Hz refresh rate, high contrast ratio, 16-bit high grayscale, and a 160° ultra-wide viewing angle, delivering a superior visual experience.

Magnetic Module

Curved splicing

90° splicing

High refresh rate

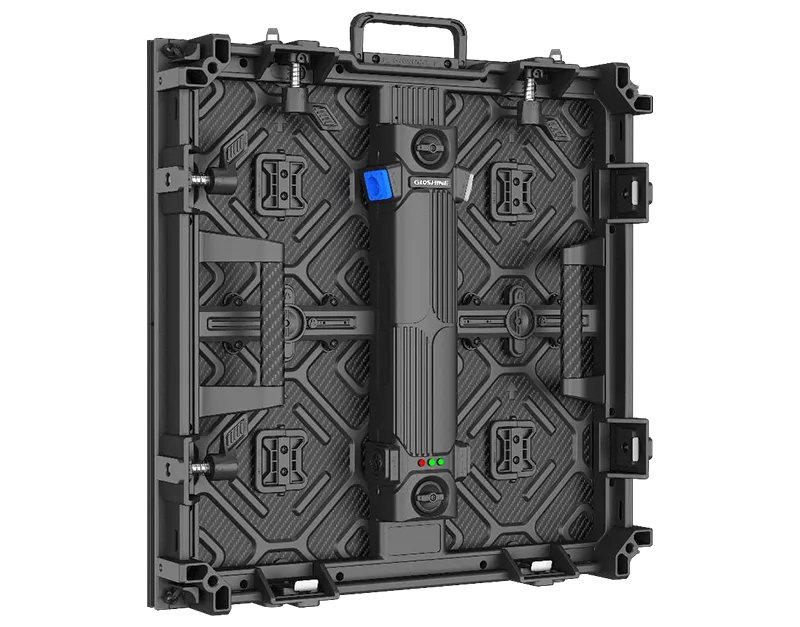

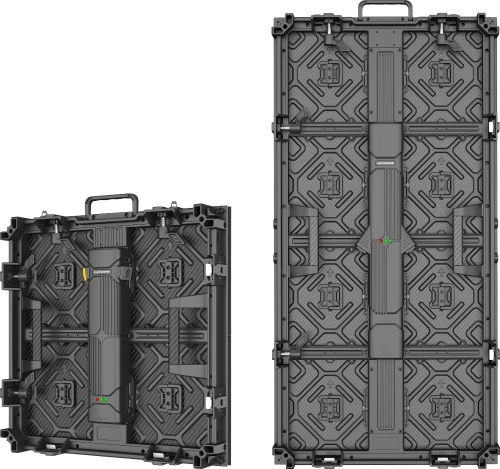

Tool-free Maintenance (Rear Cover)

The separate design of power supply, receiving card, and Hub board enables targeted replacement of faulty components, reducing spare parts costs.The rotary knob design on the rear cover for quick maintenance and tool-free operation.

Anti-collision Design(Optional)

Protecting corner lamp beads from being damaged by collisions.

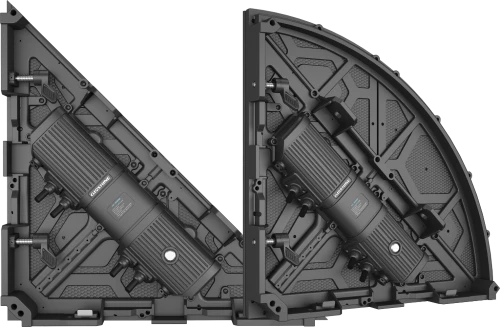

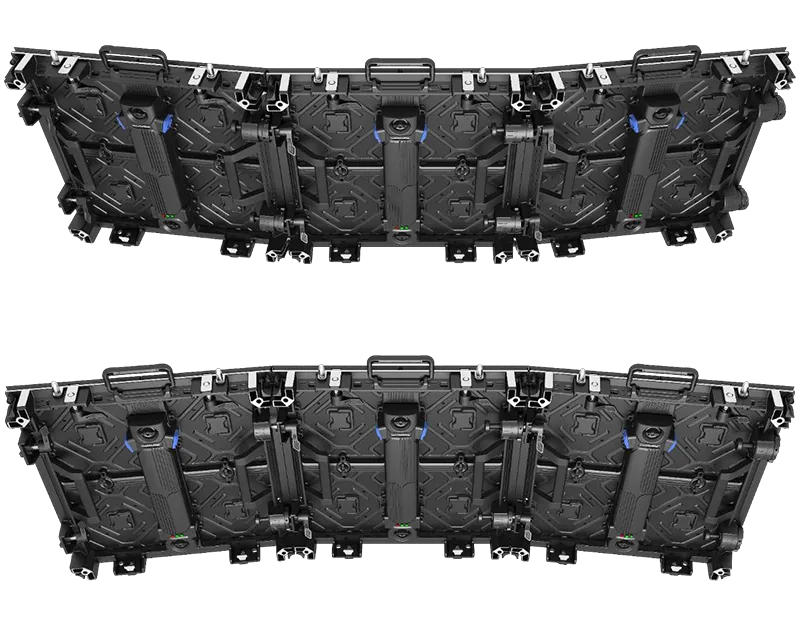

Curved Shape

DN & DN Plus Series available splicing for curved shape.Easy radian adjustment, efficient installation.Curved cabinet/45° beveled cabinet Angle Adjustment:-10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10°.

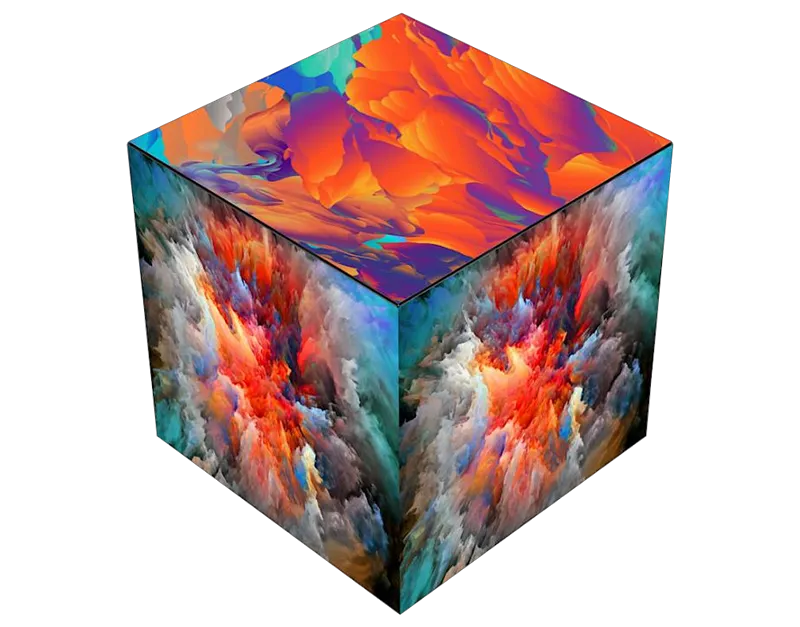

Cubic Column/Cube/Vertical Splicing

DN supports four-sided cutting edge.DN Plus supports two-side cutting edge (left and right).

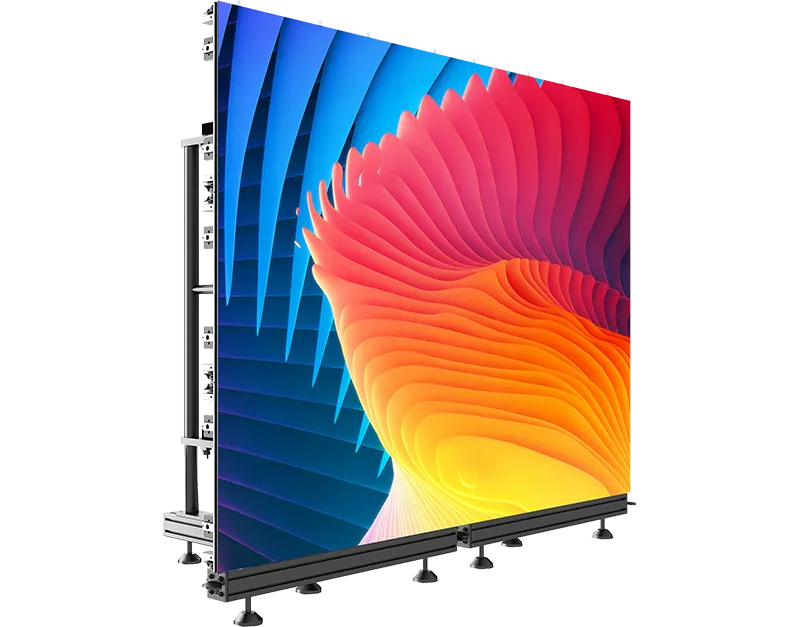

Stacking Installation

Maximum Stacking and Hanging Height: 10 Meters.

Applications

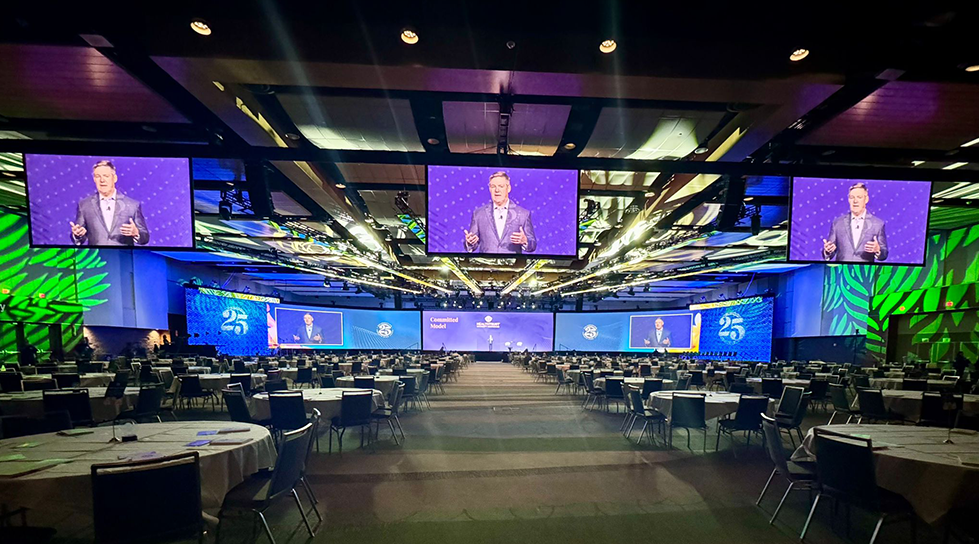

Conference

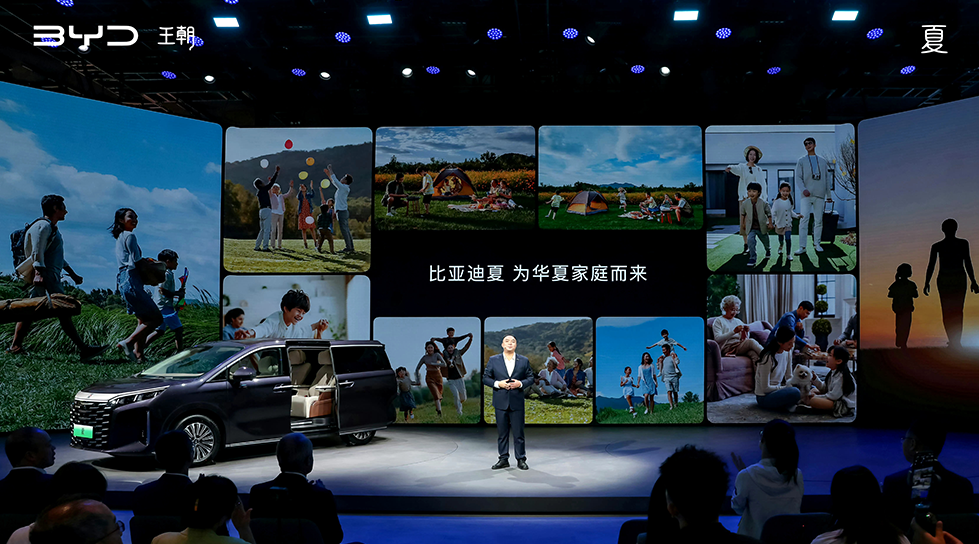

Automobile exhibition

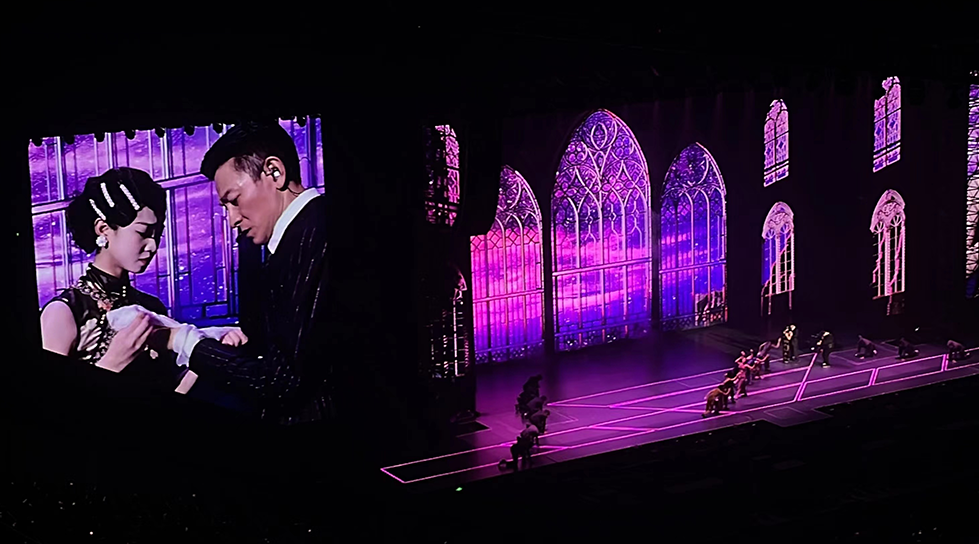

Concert

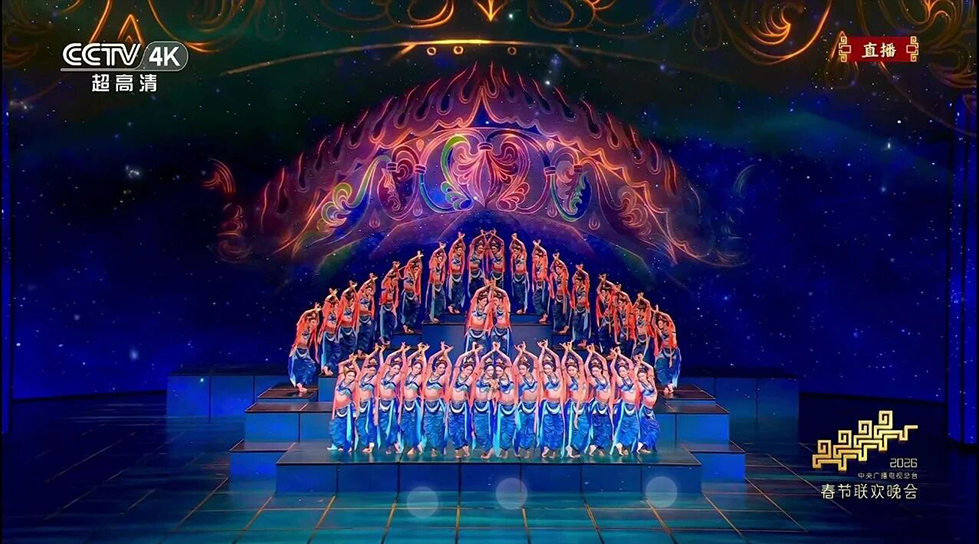

Gala show

Specification Sheet

Download the form

Model No.

DN-B1.25

DN-B1.5

DN-B1.9

DN-B1.9

DN-B/DN PLUS-B2.6

DN-B/DN PLUS-B2.9

DN-B/DN PLUS-B3.9

Pixel Pitch

1.25mm

1.5mm

1.9mm

1.9mm

2.6mm

2.9mm

3.9mm

LED Type

SMD1010

SMD1212

2 in 1

SMD1515

SMD1515

SMD2020

SMD2020

Packaging techinque

GOB/HOB

GOB/HOB

SMD

GOB/HOB

SMD

SMD

SMD

Pixel Density(pixel/㎡)

640000

409600

262144

262144

147456

112896

65536

Panel Dimension(mm)

DN:500*500*76

DN:500*500*76

DN:500*500*76

DN:500*500*76

DN PLUS:500*1000*76
DN:500*500*76

DN PLUS:500*1000*76
DN:500*500*76

DN PLUS:500*1000*76
DN:500*500*76

Panel Resolution(pixel)

DN:400*400

DN:320*320

DN:256*256

DN:256*256

DN PLUS:192*384
DN:192*192

DN PLUS:168*336
DN:168*168

DN PLUS:128*256
DN:128*128

Scan Rate

1/40 or 1/50

1/32

1/32 or 1/16

1/32 or 1/16

1/24 or 1/16 or 1/8

1/21

1/16

Brightness

600-800nits

800-1000nits

800-1000nits

800-1000nits

800-1000nits

800-1000nits

800-1000nits

Refresh Rate

3840Hz/7680Hz

Gray Scale

14-16Bit

Color Temperature

6500-9500K

Panel Weight

DN:7.2kg±10% DN PLUS:12.2kg±10%
GOB:DN:7.5kg±10% DN PLUS:12.7kg±10%
Redundant: 8kg±10%

Cabinet Material

Die-Casting Aluminum

Max Power Consumption

≤580w/㎡

Ave Power Consumption

≤290w/㎡

Viewing Angle

H:160°/V:140°

Working Voltage

AC200-240V~50/60Hz or AC100-240V~50/60Hz

IP Rating

IP30

Serviceability

Front/Rear

Curve

Curved cabinet/45 beveled cabinet( 10 curved lock):-10°/-7.5°/-5°/-2.5°/0°/2.5°/5°/7.5°/10°

90° lock or 90° connector plate can do vertical splicing

Max Stacking/Hanging

10m

Operating Temp/Humidity

-20℃~+45℃;10%~60%RH

Storage Temp/Humidity

-40℃~+60℃;10%~60%RH

Processing platform

Novastar/Magnimage/Colorlight

Product Certification

MET/CE/EMC


Accessories

Curved lock

Side lock

Flight case

Knob

Vacuum suction tool

Power cable

Signal cable
