Radiant II Series

Ultra-Thin Multi-Function Commercial LED Display

P1.5/1.9/2.6/2.9

Core features

Radiant series ultra-lightweight small pixel pitch indoor rental LED displays offer portability, flexibility, easy maintenance, diverse configurations, and high cost-effectiveness, representing a fully new generation of products.

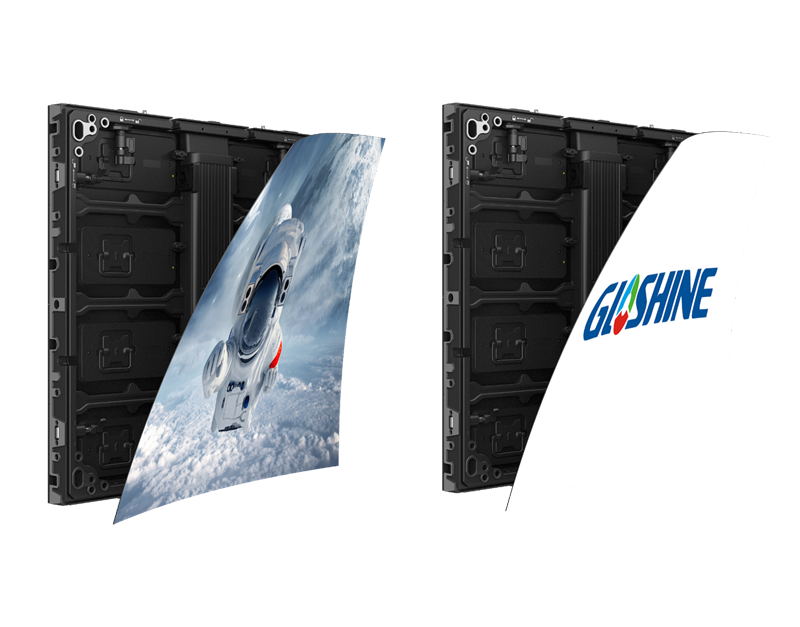

Curving Capability

Ultra-Thin&Light

Convenient Maintenance

Dual-Side Display

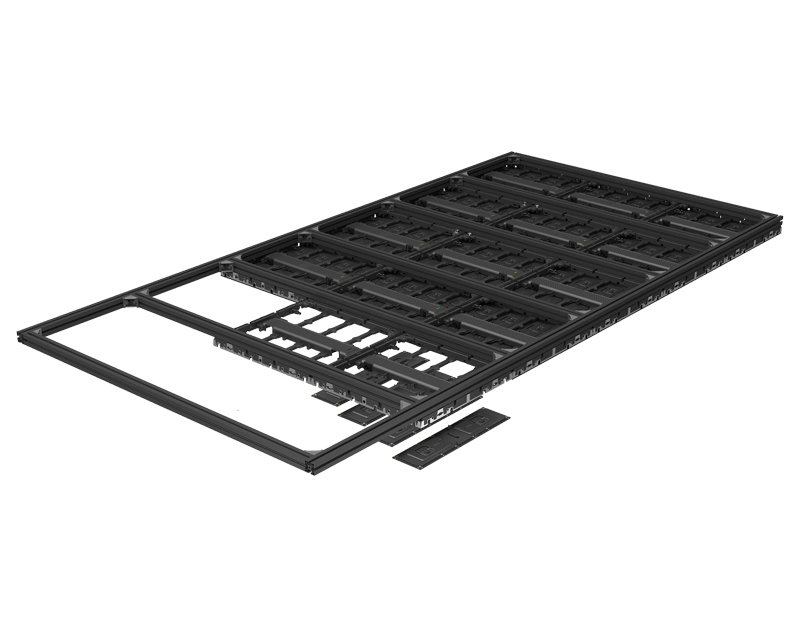

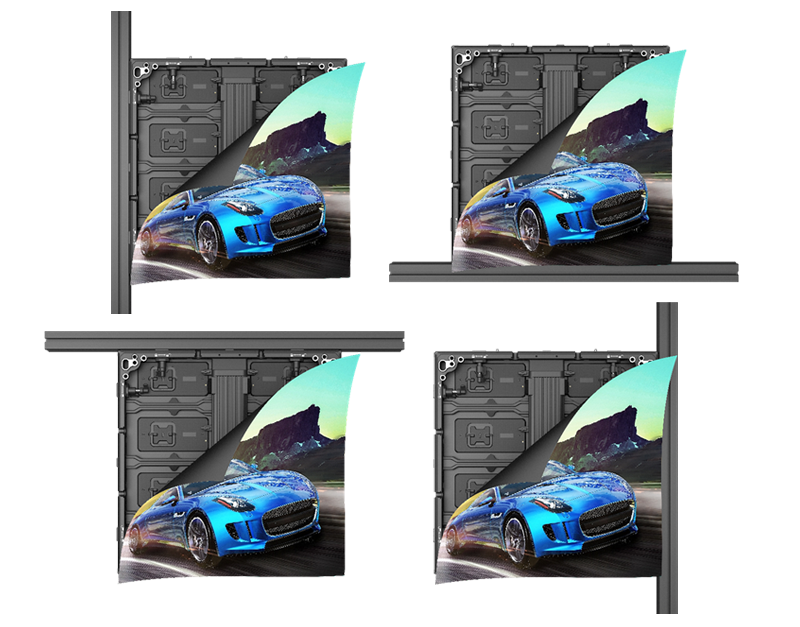

Standardized Profiles

Perfectly compatible with the EU-standard 40*40mm aluminum profiles, significantly simplifying the installation process for exhibition venues and temporary sites, enabling rapid assembly and disassembly.

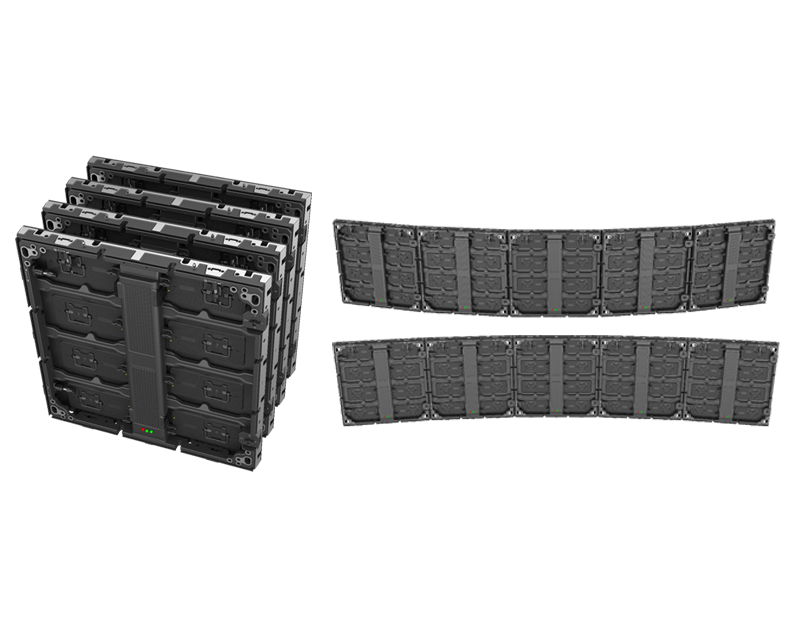

Curved Splicing

Curved cabinets can be optionally equipped with angle blocks for curved splicing, with adjustable angles of: -7.5° / -5° / 0° / 5°.

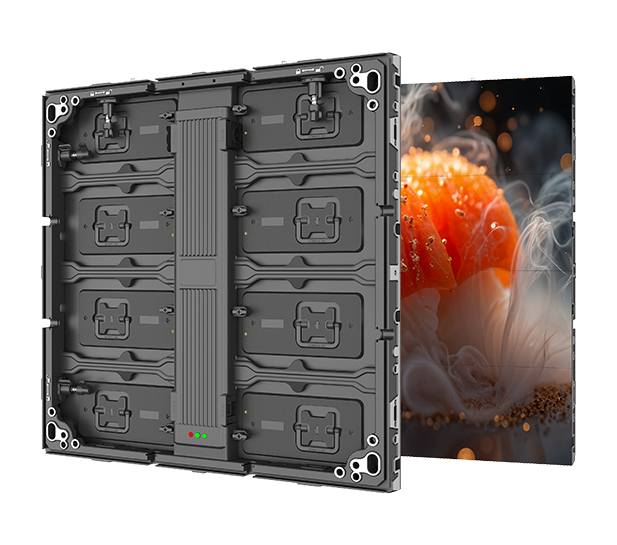

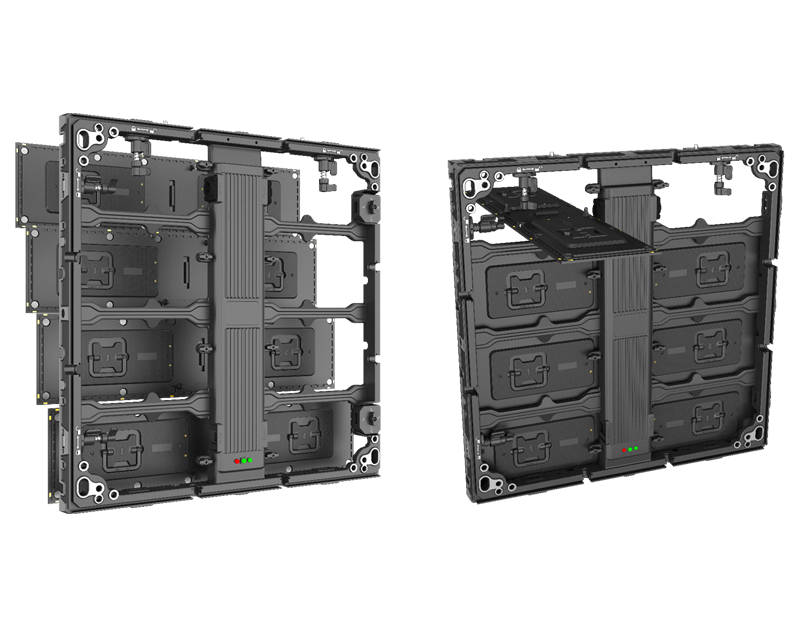

Efficient Maintenance

Modules, power supplies, and signal components all support front maintenance. This simplifies the maintenance workflow, greatly improves service efficiency, and ensures the equipment can be restored to stable operation quickly.

Diverse Installation Scenarios-Wall-Mounted Installation

Diverse Installation Scenarios-Ceiling Mount

Customizable Backplate

Offers customizable backplates to effectively conceal cabinet cables, ensuring a unified visual style and strengthening brand identity.

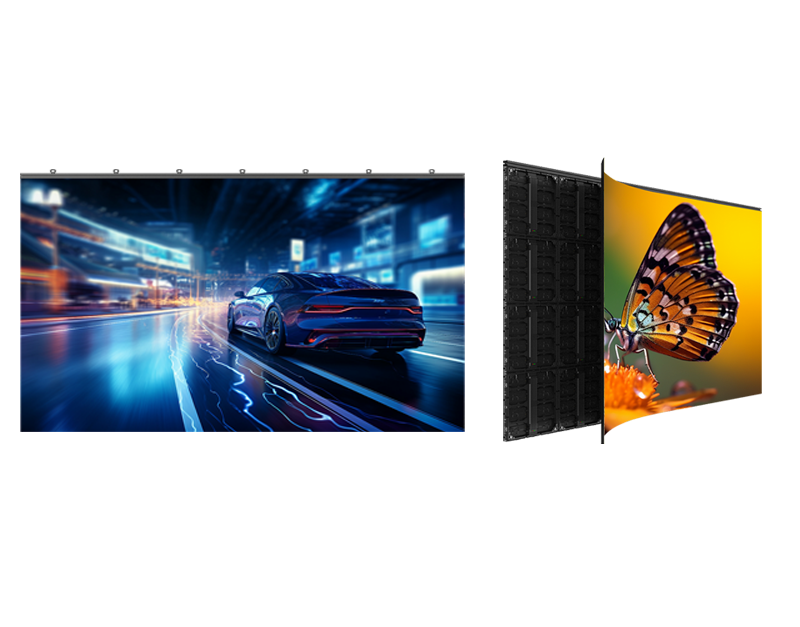

Dual-Side Display

Features dual-side display function, allowing for synchronized or differentiated content on the front and rear sides. This effectively covers bidirectional foot traffic, enhances information reach, and increases brand exposure.

Applications

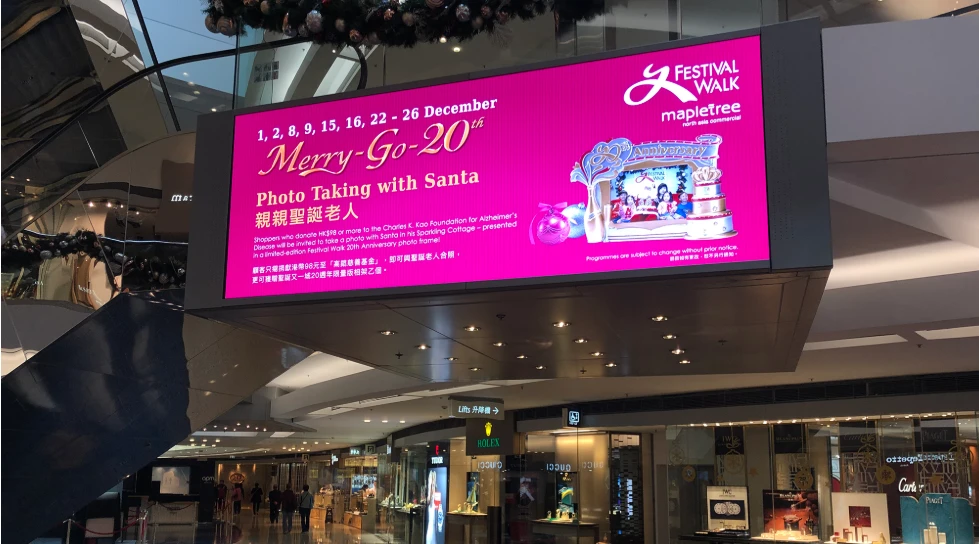

Commercial Advertising & Retail

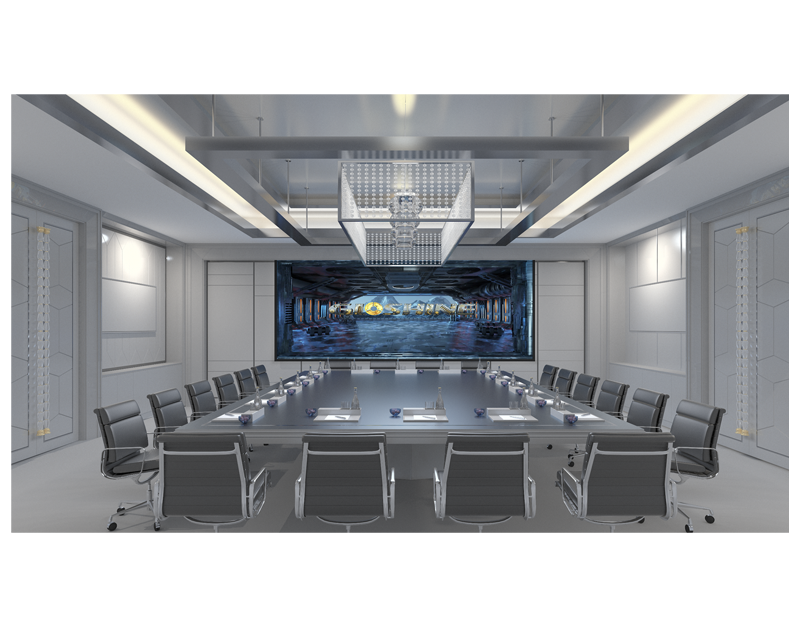

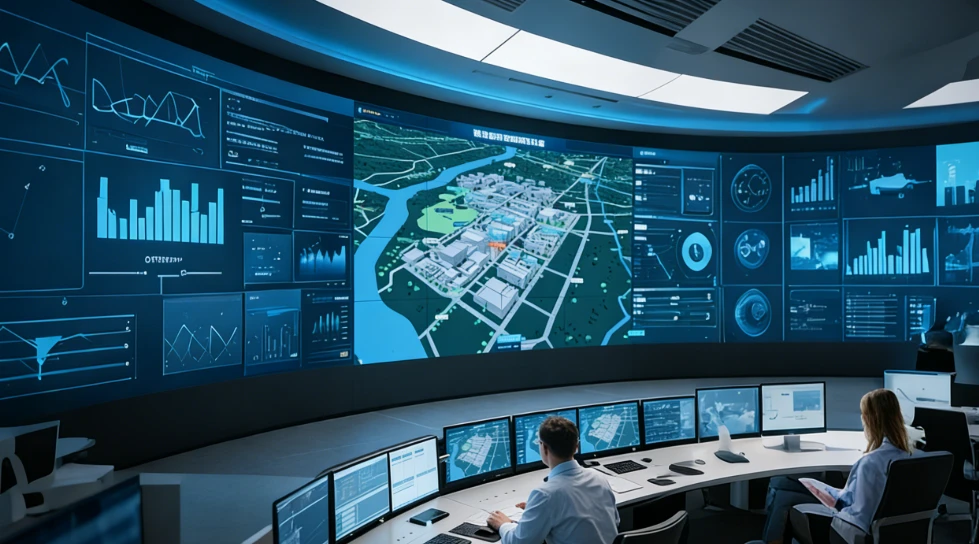

Control Room

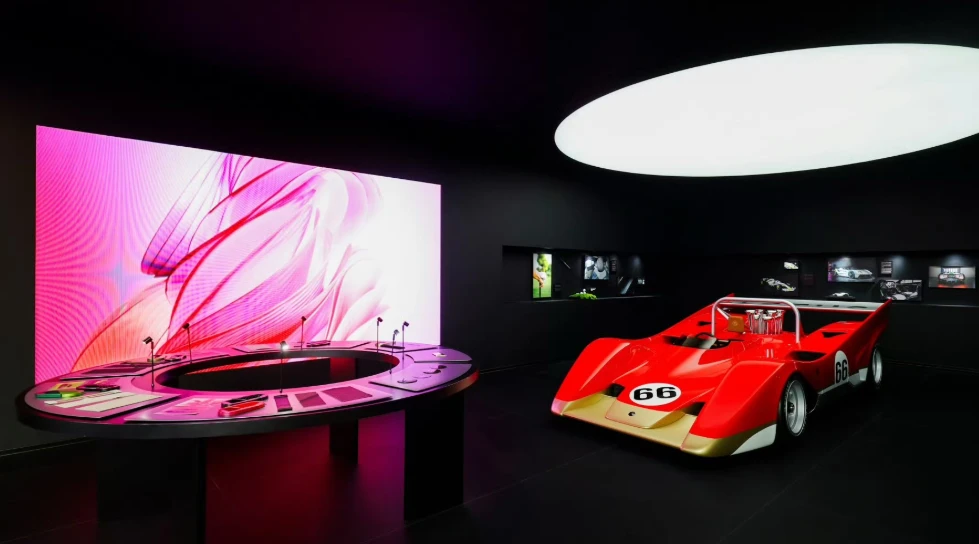

Enterprise Exhibition Hall

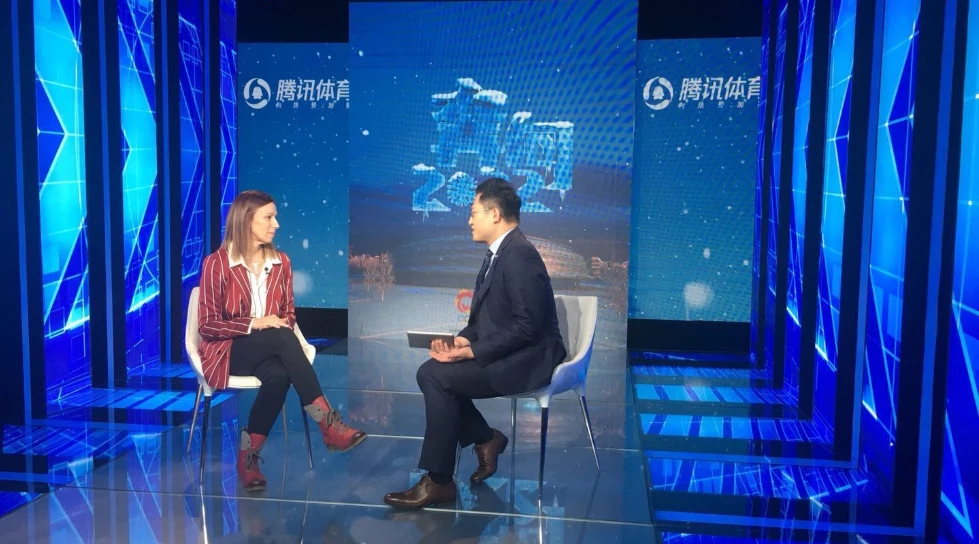

TV Studio

Specification Sheet

Download the form

Model No.

RA Ⅱ1.5(Indoor)

RAⅡ1.9(Indoor)

RA/RA PLUS Ⅱ2.6(Indoor)

RA/RA PLUS Ⅱ2.9(Indoor)

Pixel Pitch

1.57*1.56mm

1.98mm

2.6mm

2.97mm

LED Type

SMD1212

SMD1515

SMD1515

SMD2020

Packaging techinque

HOB/GOB

HOB/GOB

SMD

SMD

Pixel Density

407040/㎡

254016/㎡

147456/㎡

112896/㎡

Brightness

600-800nits

600-800nits

600-800nits

600-800nits

Color Temperature

6500-9500k

6500-9500k

6500-9500k

6500-9500k

Scan Rate

1/53

1/42

1/32

1/28

module Dimension

500*125

500*125

500*125

500*125

Panel Dimension

500*500*40mm

RA Ⅱ 500*500*40mm
RA PLUS Ⅱ 500*1000*40mm

RA Ⅱ 500*500*40mm
RA PLUS Ⅱ 500*1000*40mm

RA Ⅱ 500*500*40mm
RA PLUS Ⅱ 500*1000*40mm

Panel Ultimate Slicing Length

5.1Kg±10%

RA Ⅱ 5.1kg±10%
RA PLUS Ⅱ 9.6kg±10%

Panel Cable Length

Die-Casting Cabinet

Panel Resolution

318*318pixel

RA Ⅱ 252*252pixel
RA PLUS Ⅱ 252*504pixel

RA Ⅱ 192*192pixel
RA PLUS Ⅱ 192*384pixel

RA Ⅱ 168*168pixel
RA PLUS Ⅱ 168*336pixel

Curve

Optional

Max Stacking/Hanging

10m

Max Power Consumption

≤580w/㎡

Ave Power Consumption

≤290w/㎡

Viewing Angle

H:160°/V:140°

Refresh Rate

3840Hz

3840Hz/7680Hz

Gray Scale

13-16bit

IP Rating

IP30

Lifetime

50,000h

Operating Temp/Humidity

-20℃~+45℃;10%~60%RH

Storage Temp/Humidity

-40℃~+60℃;10%~60%RH

Working Voltage

AC200-240V~50/60Hz or AC100-240V~50/60Hz

Processing platform

Novastar/Colorlight/Magnimage
