P1.5/1.9/2.3/2.8

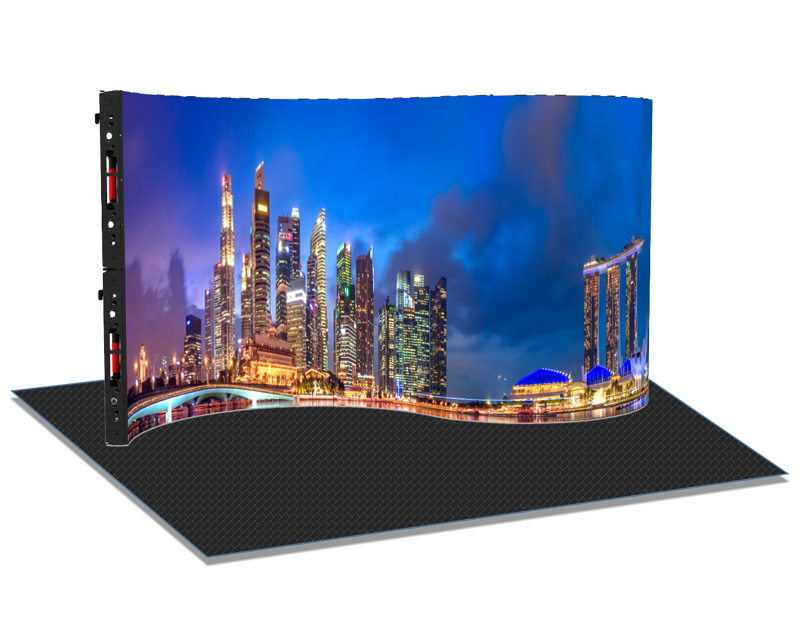

MT Edge Series is an indoor high-definition LED display featuring an ultra-thin cabinet design. Equipped with flexible modules and support for a wide variety of shapes, it enables fast installation for both rental and fixed installation scenarios. Each panel offers a maximum adjustable angle of ±80°, allowing for curved, right-angle, wave, and other creative configurations, unlocking endless possibilities for indoor visual display.

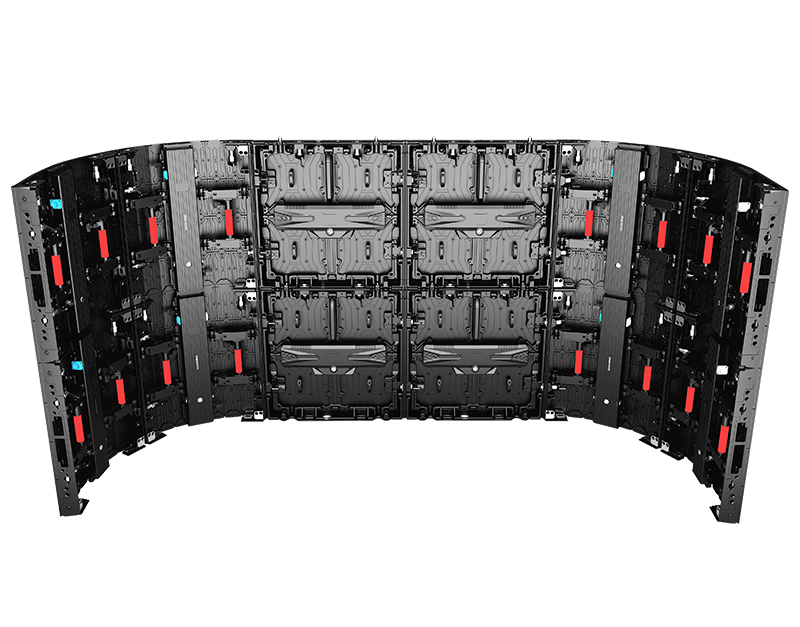

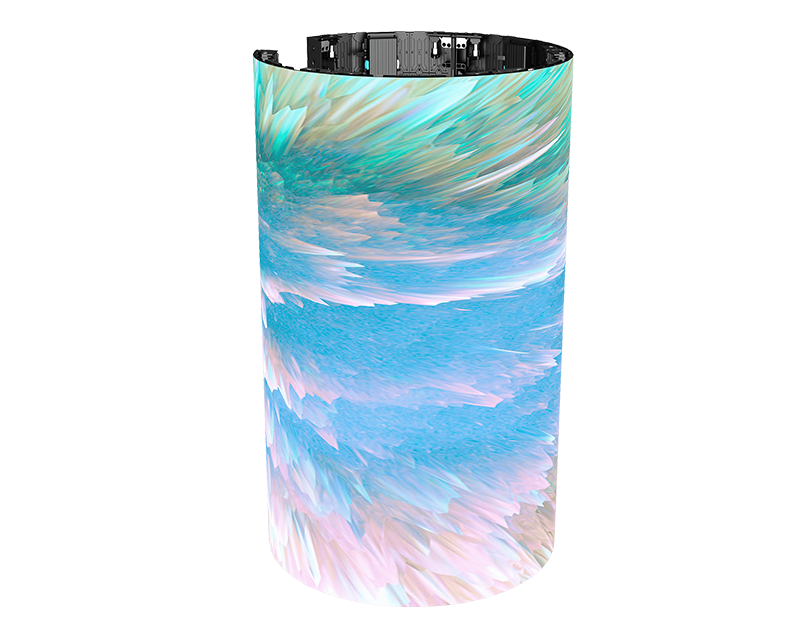

At least 5 cabinets can do a cylindrical shape.Max curved angle ±80° per panel.

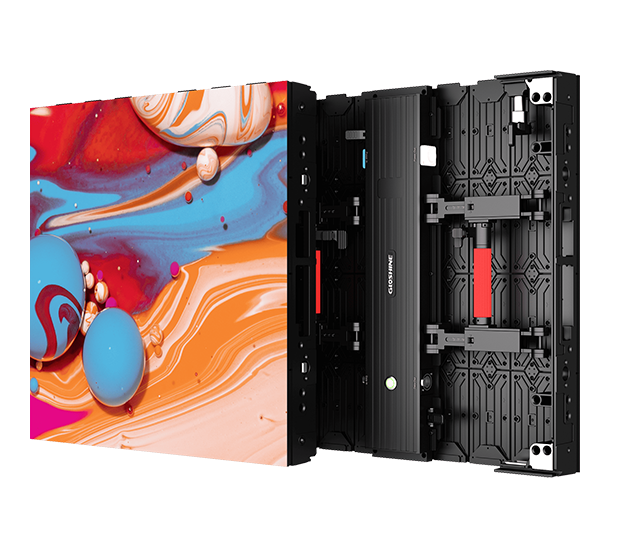

High-quality hardware, stable display performance and long-lasting operation Long time use can also maintain stable picture quality.

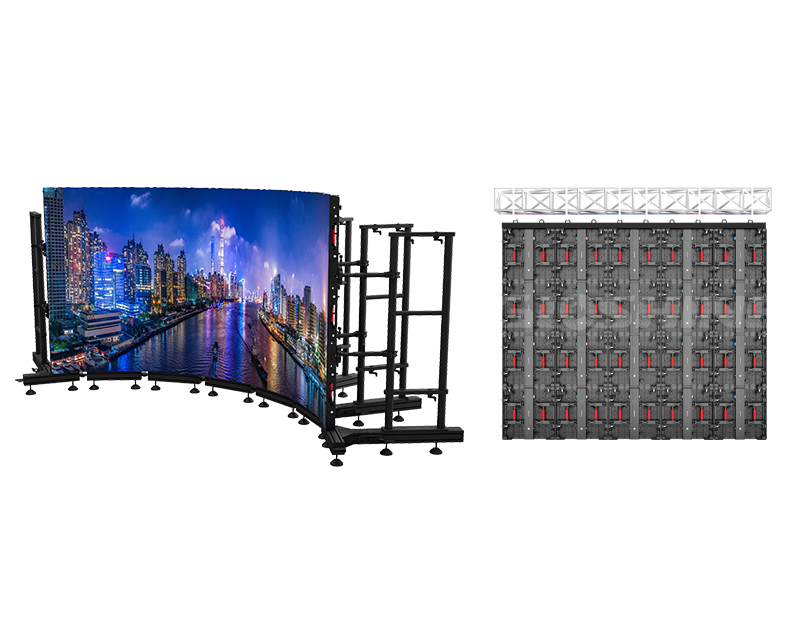

Maximum vertical/lifting height 5 meters.
Support to work with MT series，Create creative booths.
| Model No. | MT Edge1.5（Indoor） | MT Edge1.9（Indoor） | MT Edge1.9（Indoor） | MT Edge1.9（Indoor） | MT Edge2.3（Indoor） | MT Edge2.8（Indoor） |
| Pixel Pitch | 1.55mm | 1.93mm | 1.93mm | 1.93mm | 2.38mm | 2.82mm |
| LED Type | SMD1212+HOB | SMD1515+HOB | S-SMT 1212 | Two in one | SMD1515 | SMD2020 |
| Pixel Density pixel/m² | 409,600 | 262,144 | 262,144 | 262,144 | 173,056 | 123,904 |
| Brightness(nits) | 700-1000 | 700-1000 | 900-1100 | 700-1000 | 800-1200 | 800-1200 |
| Color Temperature | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K | 6500-9500K |
| Scan | 1/40 or 1/16 | 1/32 | 1/32 | 1/32 | 1/26 | 1/22 |
| Panel Dimension(W*H*D) | 496mm*496mm*62mm(19.53"*19.53"*2.44") | |||||
| Panel Resolution(pixel) | 320*320 | 256*256 | 256*256 | 256*256 | 208*208 | 176*176 |
| Panel Weight | 8KG(17.64lb)±10% | |||||
| Cabinet Material | Die-casting Aluminum | |||||
| Max Power Consumption | ≤580W/m² | |||||
| Ave Power Consumption | ≤290W/m² | |||||
| Viewing Angle | H：160° V：140° | |||||
| Refresh Rate | 7680/3840Hz | |||||
| Gray Scale | 14-16bit | |||||
| Working Voltage（Wide Voltage） | AC100-240V～50-60Hz | |||||
| Working Voltage（Narrow Voltage） | AC200-240V～50-60Hz | |||||
| IP Rating | IP30 | |||||
| Max Stacking/Hanging | 5m | |||||
| Serviceability | Rear | |||||
| Curve | -40°-20°/0°/20°/40° | -80°/-60°/-40°-20°/0°/20°/40°/60°/80° | ||||
| Lifetime | 50000h | |||||
| Operating Temp/Humidity | -20℃～+45℃；10%～60%RH | |||||
| Storage Temp/Humidity | -40℃～+60℃；10%～60%RH | |||||
| Processing platform | Novastar/Colorlight /Magnimage/Brompton | |||||
| Certifications | CE-EMC/FCC/MET | |||||
